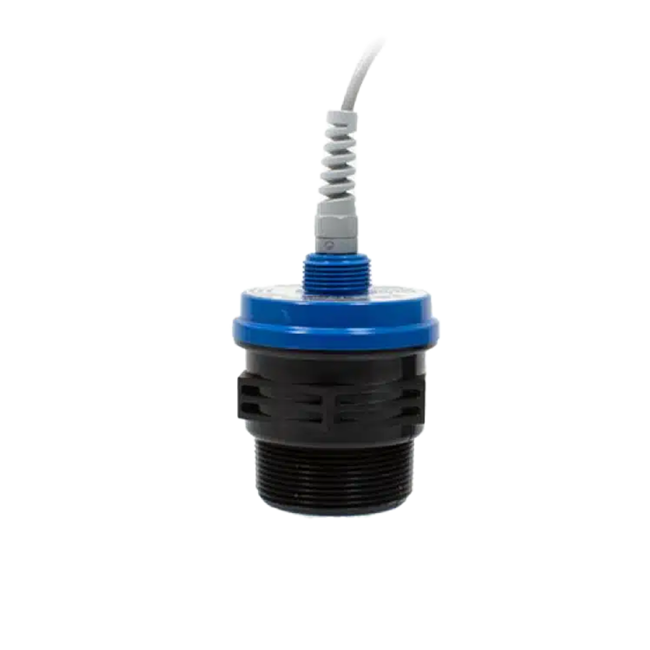

Rugged, low-power, and rated Intrinsically Safe for hazardous location, with optional Gas Discharge Tube Surge Protection. Get an on-demand level measurement in as little as 250 ms. Everything about MNU-IS ultrasonic sensor setup is easy, from simple daisy chain wiring to remote configuration via the Internet.





Features
  • New Quick Mode
  • Easy Wiring & Set-up



Specifications

Accuracy

  • ± 0.25 % of detected range

Approvals

  • CSA Intrinsically Safe
  • ATEX
  • IECEx
  • Optional Gas Discharge Tube Surge Protection

Available Ranges

  • 1 to 25 ft
  • 5" to 12 ft

Data Portals

  • Online
  • LAN

Gas Discharge Tube Surge Protection

  • 150 V, 1 kA

Housing Rating

  • IP68
  • M12 connector only rated to IP67

Mounting

  • Sensor Face: 2" NPT
  • Sensor Back: 3/4" NPT

Operating Temperature

  • Standard: -30° to 60° C (-22° to 140° F)
  • Alternate: -20° to 54° C (-4° to 122° F)

Operating Voltage

  • 8-24 VDC

Output

  • RS-485 Modbus RTU

Total Current Draw

  • 18-26 mA @ 24 VDC, Typ. 18 mA
  • 32-63 mA @ 8 VDC, Typ. 37 mA

Transducer

  • Ceramic transducer, PVDF faced

Upper Housing

  • PC/PBT blend

Waiting Status Current Draw

  • 13 mA @ 24 VDC
  • 17 mA @ 8 VDC

Wiring Connection

  • 4-Conductor Shielded Cable M12 Micro Connector (requires approved mating connector/cable)
