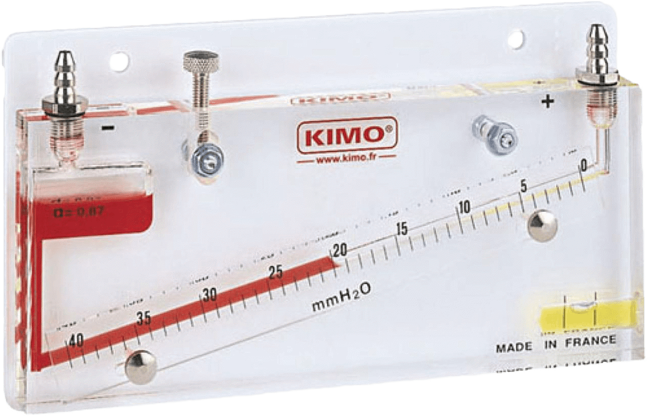

MG Series Inclined Liquid Column Manometers

Brand: Sauermann Group
Add Product to My Catalog

Kimo's MG series are inclined liquid column manometers with AWS.10 manometer liquid with a density of 0.87.

Inclined liquid column manometers measure slight variations in pressure, depression or differential pressure of air or gas.
Features
  • Zero adjustment by moving the slide strip
  • Safety reservoir enabling momentanes overshooting of the scale
  • Integrated spirit level for adjusting horizontality
  • Comes with a white PVC support, two screws and two rawlplugs, two 487 connectors and a bottle of AWS.10 liquid

1 - 3 of 3 Part Numbers
MG 20
MG 20
MG Series Inclined Liquid Column Manometers. Measuring Range: 0-20 mmH2O or 0-200 Pa
MG 50
MG 50
MG Series Inclined Liquid Column Manometers. Measuring Range: 0-50 mmH2O or 0-500 Pa
MG 80
MG 80
MG Series Inclined Liquid Column Manometers. Measuring Range: 0-80 mmH2O or 0-800Pa
1 - 3 of 3 Part Numbers

Specifications

Brand

MG 20 Differential Pressure

  • 0 to 20 mmCE
  • 0 to 200 Pa

MG 50 Differential Pressure

  • 0 to 50 mmCE
  • 0 to 500 Pa

MG 80 Differential Pressure

  • 0 to 80 mmCE
  • 0 to 800 Pa

Parameters

  • Differential pressure

Manometer Type

  • Inclined liquid column manometer

Manometric Liquid

  • AWS 10 red oil, density 0.87 at 15° C

Maximum Static Pressure

  • 6 bars

Reservoir Capacity

  • 20 ml

Operating Temperature

  • -30° to 60° C
