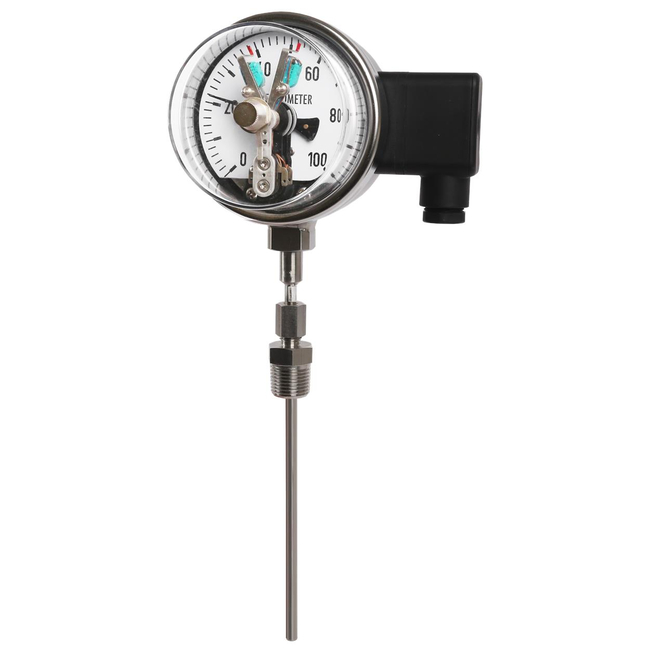

Euro Gauge Inductive Contact Type Bi-Metal Temperature Gauge T511 (H), T512 (H/L), T513 (L), T514 (H/HH), T515 (L/LL)

Brand: Wise Control Inc

Contact type temperature gauge is installed with electric contact actuated by pointer. It provides the function which electrical circuit can be opened or closed by manual set point.

It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.

Specifications

Accuracy

  • ± 2.0 % of Full Scale

Case

  • 304 Stainless Steel

Contacts

  • Maximum
  • Contact Rating: AC 220 V, 0.25 A
  • DC 100 V, 0.5 A
  • With max. No. of Contact: 2 Sets per Gauge

Cover

  • 304 Stainless Steel
  • Bayonet Typical

Dial

  • White Aluminum with Black Graduations

Location of Stem

  • Bottom Connection, Surface, Case Mounting

Nominal Diameter

  • 100 & 160 mm

Options

  • Special Accuracy, ± 1.0 % of Full Scale

Pointer

  • Black Painted Aluminum Alloy

Stem Out Diameter

  • 304, 316 & 316L Stainless Steel
  • Maximum
  • 6.0, 6.4, 8.0 & 10.0 mm Diameter

Stem, Process Connection

  • 3/8", 1/2", 3/4" PT or NPT G 1/2B, G 3/4B

Temperature Element

  • Coiled BiMetal

Window Material

  • Polycarbonate: 100 & 160 mm
  • Safety Glass: Only Available with Diameter 100 mm

Working Range

  • Maximum
