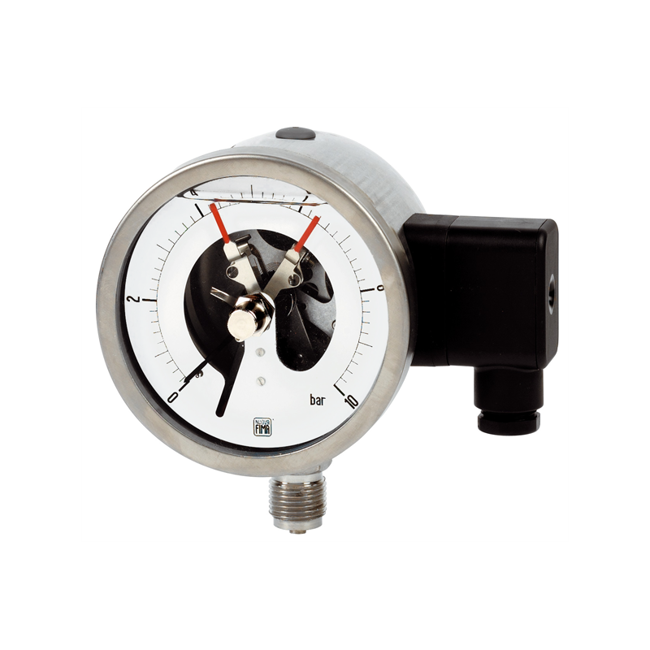

MCE18 DN100 Pressure Gauge with Electric Contact
Brand: Nuova FimaThey are used to control the electrical operation of compressors, pumps, presses, hydraulic and pneumatics equipment, chemical and petrochemical plant.
The contacts open or close the circuit depending on the position of the indicating pointer and they are adjustable over the whole range.
For application on severe working conditions, such as rapid and frequent pressure change, vibration and pulsation, they are manufactured with the case liquid filled.
The filling drastically reduces the effect of such factors as well as those caused by a corrosive atmosphere, giving longer life and better performances of the pressure gauge and their electric contacts.
They are also available with inductive contacts intrinsically safe.
Specifications
Brand
Accuracy
- ± 1,0 % as Per EN 837-1 - DIN 16085 (1)
- Filled Model: ± 1,6 % as Per EN 837-1 - DIN 16085 (1)
Ambient Temperature Range
- -13° to +149° F (-25° to +65° C)
Case
- Stainless Steel
Dial
- Aluminum, White with Black Markings
Elastic Element
- AISI 316L Stainless Steel
Filling Liquid
- Filled Model: Silicon Oil
IP Protection Rating
- Filled Model: IP65 as Per EN 60529 / IEC 529
- IP55 as Per EN 60529 / IEC 529
Mechanical Contact
- Filled Model: Magnetic Snap-Action, Electronic, Inductive
- Sliding Contact, Magnetic Snap-Action, Electronic, Inductive
Movement
- Stainless Steel
Over Pressure
- Not Suitable
Pointer
- Not Adjustable, Aluminum, Black
Process Fluid Temperature
- Filled Model: Max.
- Maximum
Ranges
- From 0 to 15 to 0 to 20,000 psi (From 0 to 1 to 0 to 1600 bar or Equivalent Units)
Ring
- Stainless Steel, Bayonet Lock
Socket Material
- AISI 316L Stainless Steel
Window Material
- Plastic
Working Pressure
- Maximum
