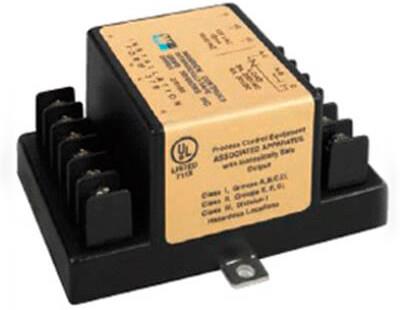

Series 27 Intrinsically Safe Control
Brand: Gems Sensors, IncSeries 27 intrinsically safe controls have SPDT output contacts and are UL approved for use in Class I, Groups A, B, C & D; Class II, Groups E, F & G; and Class III hazardous locations.
Control sensitivity is factory-set.
Series 27 is UL Pilot Duty rated. CSA certified for Class 1, Groups A, B, C and D; Class II, Groups E, F and G; Class III.
Features- Solid State Reliability
- Cannot Ignite Flammable Materials
- Internal Surge Suppression
- SPDT Contacts
- Can Be Used for Single Level or Differential Service
Specifications
Brand
Contact Design
- 1 NO & 1 NC
Sensitivity
- 0 to 100K ohms
Voltage
- Primary: 120 Vac, 240 Vac (+10 %/-15 %) 50/60 Hz
- Secondary: 11 Vac, 2.3 mA
Temperature Range
- -40° to 150° F (-40° to 65° C)
Certifications & Approvals
- UL
- CSA
Contact Rating
- 8 A Resistive (24/120/240 Vac)
- Hazardous atmospheres
- Pumps
- Waste treatment
- Alarms
- Sewage
- CP industry
