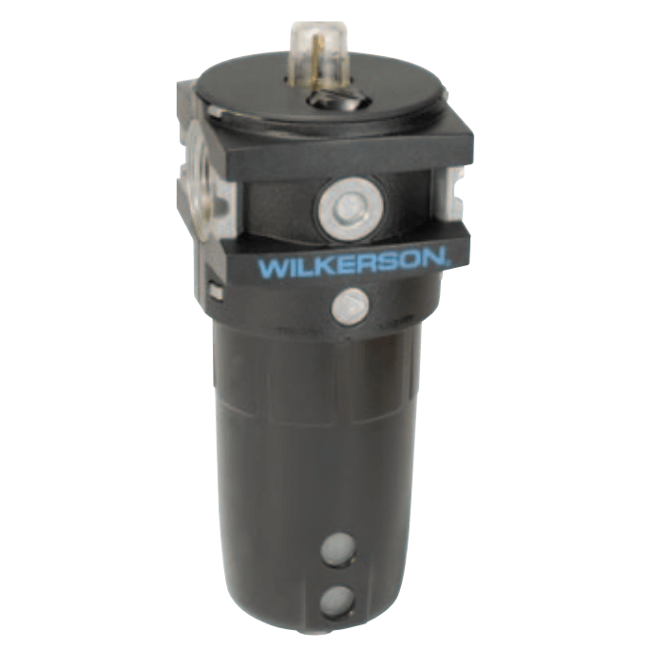

Wilkerson L90 Series Lubricator, Port Sizes 1/8, 1/4; Flows to 390 SCFM

L90 Series Lubricator

Brand: Wilkerson Corporation
Add Product to My Catalog

Features
  • Integral 3/4" or 1" ports (BSPP & NPT)
  • Robust but lightweight aluminum construction
  • Proportional oil delivery over a wide range of air flows
  • Possible to fill under system pressure eliminating down time
  • Large oil reservoir

1 - 4 of 4 Part Numbers
L90-06-LD00
L90-06-LD00
  • Thread Type - NPT
  • Port Size - 3/4"
  • Lubricator - EconOmist™
  • Bowl / Drain - Metal Bowl / Sight Gauge, No Drain
L90-08-LD00
L90-08-LD00
  • Thread Type - NPT
  • Port Size - 1"
  • Lubricator - EconOmist™
  • Bowl / Drain - Metal Bowl / Sight Gauge, No Drain
L90-C6-LD00
L90-C6-LD00
  • Thread Type - BSPP
  • Port Size - 3/4"
  • Lubricator - EconOmist™
  • Bowl / Drain - Metal Bowl / Sight Gauge, No Drain
L90-C8-LD00
L90-C8-LD00
  • Thread Type - BSPP
  • Port Size - 1"
  • Lubricator - EconOmist™
  • Bowl / Drain - Metal Bowl / Sight Gauge, No Drain
1 - 4 of 4 Part Numbers

View_Details

Specifications

Brand

Flow Capacity

  • 3/4": 315 scfm
  • 1": 390 scfm

Maximum Supply Pressure (All Models)

  • 254 psig (17.5 bar)

Operating Temperature (All Models)

  • 14° to 140° F (-10° to 60° C)

Bowl Capacity (All Models)

  • 500 cm³ (16.9 oz.)

Height x Width x Depth

  • 9.7 x 3.5 x 3.7 in (247 x 90 x 94 mm)

Weight

  • 1.8 lb (0.8 kg)
