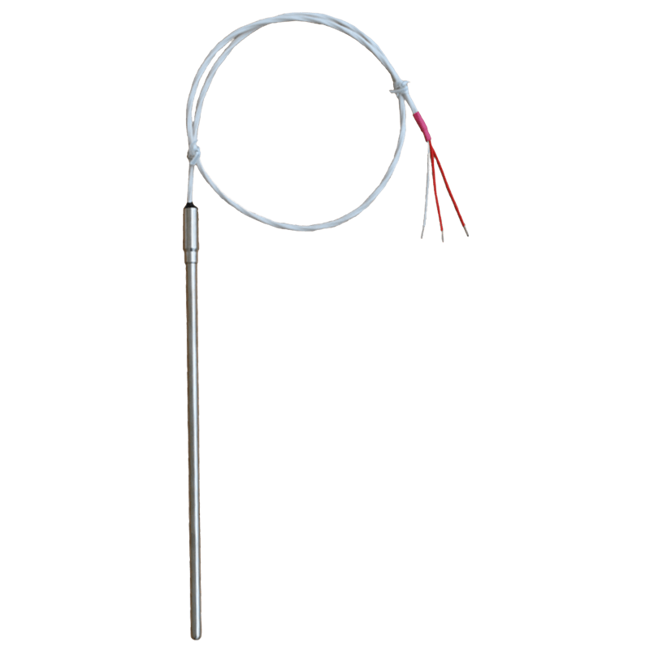

Type 1250 RTD with Lead
Brand: SOR IncSOR Type 1250 RTD Elements can be supplied with specified lead wire lengths as needed.
Longer leads offer more flexibility for use in many applications.
Features- Fiberglass and Teflon insulation available on leads
- Standard temperature ranges from -200° F (-129° C) to 900° F (482° C)
- A variety of termination options available for any application
Specifications
Brand
Adapter
- Bayonet Adapter (Adjustable) 1/8" (3.2 mm) O.D.
Cable Type
- Mineral Insulated (MI) Cable
Connectors
- L' Bracket Connector
Diameter
- Outer Diameter (OD): 1/8 to 3/8" (3.2 to 9.5 mm)
Lead Insulation
- Multi Strand (Flexible) Fiberglass 22 Gauge
- Multi Strand (Flexible) Teflon 22 Gauge
Materials of Construction
- Adjacent Compression Fitting, Armor (with PVC & Teflon Jacket): Stainless Steel
- Adjacent Compression Fitting: Brass
- Ferrule Material: Teflon
- Sheath Material: 316 Stainless Steel
NPT Connection
- 1/2" NPT
- 1/4" NPT
- 1/8" NPT
Process Fitting Details
- Adjacent Compression Fitting
- Double Ended Hex Fitting, 1/2" NPT
- Weather Tight Fitting, 1/2" NPT
RTD Type
- Ni120, Edison #7 (DIN 43760)
- Pt100
Seal Type
- Epoxy Seal
Sensor, Probe Connection
- 3-Wire
- 4-Wire
Sensor, Probe Type
- RTD
Temperature Coefficient
- 100 ohms Platinum: 0.00385 ohms/ohm/°C
- 120 ohms Nickel: 0.00672 ohms/ohm/°C
Temperature Range
- 0° to 482° C (32° to 900° F)
Termination
- Bare Ended Leadwire - 1" (2.54 cm)
- Large/Mini Three-Pin Jack
- Large/Mini Three-Pin Plug
- Spade Lugs
