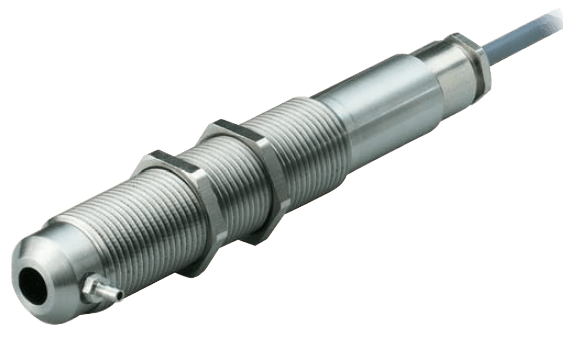

TIR-SG Infrared Thermometer
Brand: KOBOLD Instruments, Inc
The infrared thermometers in the device TIR-SG are designed for non-contact temperature measurement of metallic and non-metallic surfaces. They are suitable for general-purpose service.
Features- Linear current output, two-wire circuitry
- Measuring ranges from -20° to 2,500° C
- Simple connection and installation
- Fast response times
- Small size of measuring dot
- Adjustable emittance
- Large range of applications with different infrared detectors
- Stainless steel case
- Suitable for use in the food industry
- High measuring accuracy
Specifications
Brand
Accuracy
- ± 1.5 % of Full Scale
Applications
- Food Industry
- Heating Treatment
Cable Length
- 2 m - Hard-wired
Enclosure / Body Material
- Stainless Steel
Environmental Protection
- IP65
Filter
- 1.45-1.8 μm
Load Impedance
- 500 ohms - Max.
Measuring Range
- 300° to 1300° C (572° to 2,372° F)
Operating Temperature
- 0° to 70° C (32° to 158° F)
Output
- 4-20 mA - Analog Output
Repeatability
- 0.5 % of Full Scale
Response Time
- 10 ms
Storage Temperature
- -20° to 70° C (-4° to 158° F)
Supply Voltage
- 18-30 Vdc
Thermal Drift
- 0.02 % of Full Scale/°C
