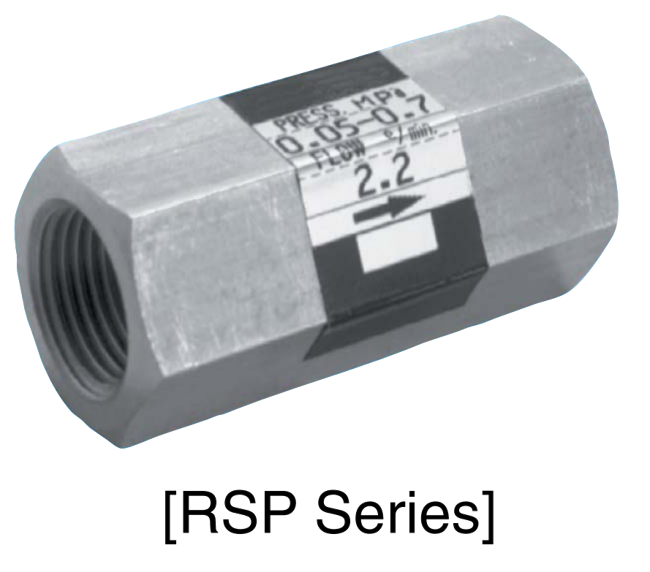

RSP Series Constant Flow Valve
Brand: Tokyo Keiso Co, LtdThe constant flow valves are used to maintain preset flow rate in a line that develops primary (inlet side) or secondary (outlet side) pressure fluctuations. Requiring no control device against pressure fluctuation, these valves contribute to savings in space and cost. Especially, they offer best suited and handy use with cooling and hot water lines of air conditioning systems in buildings and water supply lines in plants and multiple housing. Also, as the valves need no power supply to operate, they are safe against highly flammable and hazardous fluids. They are accurately set for necessary flow rate to the customer’s specification in the factory before shipment so that no field setting is required.
Features- Designed to make stable liquid feed possible at constant flow rate
- Inexpensive, Compact, Light in weight
- Installable in horizontal or vertical direction as desired
- Applicable in wide range of use with small (10 mm) to large (80 mm) bore diameters
- Maximum working temperature: 180° C (needle type)
- Available in five types suitable for various needs
Specifications
Brand
Accuracy
- Flow Rate Accuracy: ± 20 %
BSP Connection
- 1/2" BSPT Female
- 3/8" BSPT Female
Enclosure, Body Material
- 304 Stainless Steel
- Alloy (C3604)
Maximum System Pressure
- psi: 101.5 (kPa: 700, bar: 7)
Operating Temperature
- Maximum
