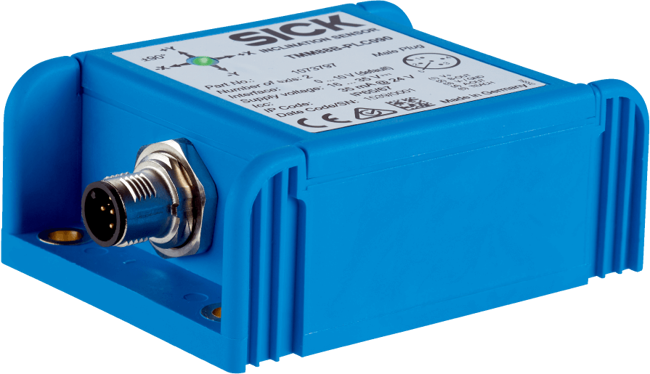

TMS/TMM88 Inclination Sensor
Brand: Sick AGThe TMS88 one-dimensional inclination sensor and the TMM88 two-dimensional inclination sensor take measurements with an accuracy of up to +/- 0.02°.
The inclination value is provided either via a current or voltage interface with a linearized output signal or via a standardized CANopen interface.
The PGT-12-Pro handheld programming tool allows the inclination sensors to be configured with ease, tailoring them perfectly to the application.
The sensors are available in UV-resistant plastic housings and in rugged aluminum housings.
Features- Inclination measurement in two axes without mutual interference
- Single-axis inclination measurement over 360° with configurable zero point
- Flexible adaptation to the application via the CANopen interface or PGT-12-Pro handheld programming tool
- Reliable output signal thanks to configurable digital filters
- Suitable for precise leveling tasks thanks to high accuracy over the entire measuring range and exceptional temperature stability
- Can also be used in the harshest ambient conditions thanks to fully encapsulated electronics
1 - 12 of 14 Part Numbers
1073788
- Communication Interface Detail - CANopen
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Aluminum
- Type - TMS88B-ACC360
1073789
- Communication Interface Detail - CANopen
- Number of Axis - 2
- Measuring Range - ± 90°
- Housing Material - Aluminum
- Type - TMM88B-ACC090
1073792
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Aluminum
- Type - TMS88B-ALC360
1073793
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Housing Material - Aluminum
- Type - TMM88B-ALC090
1073794
- Communication Interface Detail - Analog 4-20 mA
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Plastic (PBT)
- Type - TMS88B-PKC360
1073795
- Communication Interface Detail - Analog 4-20 mA
- Number of Axis - 2
- Measuring Range - ± 90°
- Housing Material - Plastic (PBT)
- Type - TMM88B-PKC090
1073796
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Plastic (PBT)
- Type - TMS88B-PLC360
1073797
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Housing Material - Plastic (PBT)
- Type - TMM88B-PLC090
1073798
- Communication Interface Detail - Analog 4-20 mA
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Plastic (PBT)
- Type - TMS88A-PKC360
1073799
- Communication Interface Detail - Analog 4-20 mA
- Number of Axis - 2
- Measuring Range - ± 90°
- Housing Material - Plastic (PBT)
- Type - TMM88A-PKC090
1073800
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Measuring Range - 360°
- Housing Material - Plastic (PBT)
- Type - TMS88A-PLC360
1073801
- Communication Interface Detail - Analog 0-10 V
- Number of Axis - 1
- Housing Material - Plastic (PBT)
- Type - TMM88A-PLC090
1 - 12 of 14 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP65
- IP67
Housing Material
- Aluminum
- Plastic (PBT)
Measurement Range
- 360°
- ± 90°
Connection Type
- Female Connector, 1x, M12, 5-Pin
- Male Connector, M12, 5-Pin
- Male Connector, 1x, M12, 5-Pin
Programmable/Configurable
- Over PGT-12-Pro
Number of Axis
- 2 / 1
Communication Interface
- CANopen
- Analog, 0-10 V
- Analog, 4-20 mA
Accuracy
- ≤ ± 80° Typical ± 0.2°, Max. ± 0.4° Typical ± 0.2°, Max. ± 0.3°
- ± 90°, 2-Dimensional, ≤ ± 60° Typical ± 0.1°, Max. ± 0.2°
- 360°, 1-Dimensional Typical ± 0.15°, Max. ± 0.25°
- ≤ ± 80° Typical ± 0.2°, Max. ± 0.4°
- Agricultural And Forestry Machinery
- Construction Machinery And Special-purpose Vehicles
- Solar Thermal Energy And Photovoltaics
- Automated Guided Systems
- Crane And Lifting Technology
- Wind Power Plant
