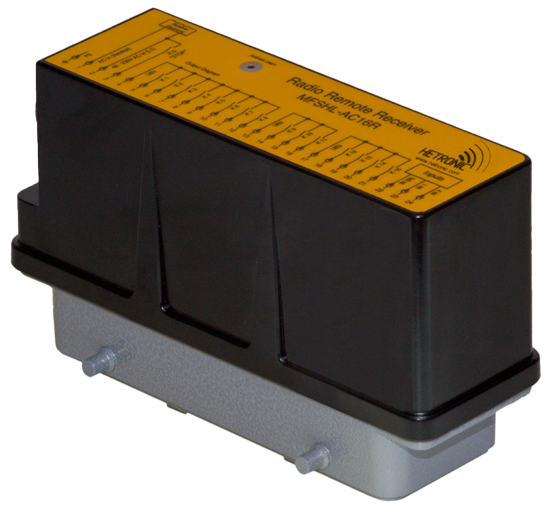

RX MFSHL AC16R Receiver
Brand: Hetronic, IncCompact and lightweight, the RX MFSHL AC16R offer the simplicity and convenience of quick connect/disconnect.
RX MFSHL AC16R comes in either 16 pol. or 24 pol. connector configurations.
The RX MFSHL AC16R 16 pol. variant offers 1 Main Contact relay, 15 switching relay digital outputs, while the RX MFSHL AC16R 24 pol. variant offers 2 AC inputs in addition to the 1 Main Contact relay, 15 switching relay digital outputs.
Both variants offer Address Learn feature, built-in warning horn, LED diagnostics for power/operation, transmission signal reception, main contact and memory errors.
Typical operating voltage range is 48VAC - 230VAC.
Features- Multiple Frequency Sharing - MFS
- H-Link Integrated
- Frequency: 2.4GHz
- Range 30m - 100ft
- Digital Relay Outputs
Specifications
Brand
Weight
- 490 gr
- 1.1 lb
Dimensions
- H: 90 mm / 3.5"
- W: 143 mm / 5.6"
- D: 56 mm / 2.2"
Frequencies
- 2.4 GHz
IP Rating
- IP65
Operating Temperature Range
- -20° to +70° C
- -4° to +158° F
H-Link
- H-Link Configurable
- Chain Hoists
- Small Overhead Cranes
- Conveyor Systems
- Monorails
- Hook Loaders
- Concrete Mixers
- Tow Trucks
- Tailgates
- Several Other Applications
