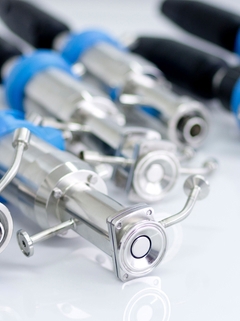

Manual or automatic retractable assembly Cleanfit CPA875

Brand: Endress+Hauser Group Services AG

Completely sterilizable, the Cleanfit CPA875 retractable assembly guarantees maximum protection from contamination making it ideal for use in life science and food & beverage applications. Fully certified (EHEDG and ASME BPE) and made of FDA-recommended materials, the CPA875 is the right choice where hygiene counts!Features
  • Highest process safety: The patented design of the dynamic sealing preventscontamination.
  • Simple operation: Remove, sterilize and calibrate the sensor while the process is running – aseptic and hygienically safe.
  • No cross-contamination: Sterile design according to EHEDG and ASME BPE as well as sealings according to FDA and USP class VI.
  • Flexible: Individual adaptation to your process requirements based on variety of process connections.
  • Optional double service chamber: Sealing between sterile and non-sterile part moves dynamically with the sensor guide – just like in a syringe. The sterile space and the process medium remain untouched.

Specifications

Measuring principle

  • Potentiometric

Application

  • Food and beverages, biotechnology, life sciences, special chemicals

Installation

  • Retractable process assembly

Characteristic

  • Open and closed tanks, piping

Design

  • Sterile and hygienic stile
  • Manual or pneumatic

Material

  • Holder: stainless steel 1.4435
  • Seals: EPDM-FDA, FKM-FDA, FFKM-FDA

Dimension

  • Immersion depth: 16.1 to 81.4 mm (0.63 to 3.20 inch), depending on process adaption

Process temperature

  • -10 to 140 °C (14 to 284 °F)

Process pressure

  • Pneumatic drive: 16 bar up to 140 °C (232 psi up to 284 °F)
  • Manual drive: 8 bar up to 140 °C (116 psi up to 284 °F)

Connection

  • Aseptic DN25 clampable, Aseptic DN50 screw-in, Clamp ISO 2852, ASME BPE, Varivent N

  • Food & Bbeverages
  • Biotechnology
  • Life Sciences
  • Special Chemicals
