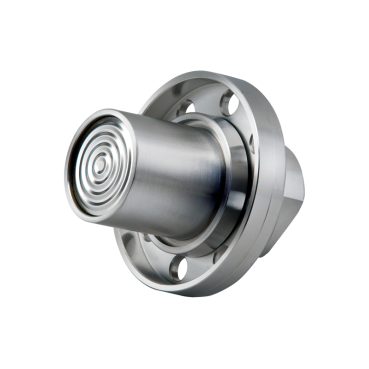

MGS9/R In Line Diaphragm Seal
Brand: Nuova FimaDiaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature.
The diaphragm is welded to the upper body, to ensure separation of filling fluid from process medium.
The “in-line” diaphragm position enables deep cleaning of their surfaces.
Flange clamping with metallic sealing guarantees the system against leakage at high process fluid temperatures and pressures.
Specifications
Brand
Accuracy
- ± 0.5 % for Direct Mounting
- ± 1 % for Capillary Mounting
Bolts & Lock Ring
- AISI 304 Stainless Steel
Diaphragm
- AISI 316L Stainless Steel
- Hastelloy C-276
Filling Liquid
- Silicon Oil
Instrument Connection
- AISI 316 Stainless Steel
Process Connection
- AISI 316 Stainless Steel
- AISI 316L Stainless Steel
Process Connection, Flanged Type
- In Line, for Flange Size 1”1/2 - 2”, 150 to 900 RF
- In Line, for Flange Size DN 40 to 50, PN 10 to 100 Step Seal
Process Connection, Welded Type
- In Line, for Pipe Size 1” 1/2 to 4”
- In Line, for Pipe Size 1/2” to 1”
- Saddle, for Pipe Size DN 2” to 4”
Process Temperature
- -49° to +302° F (-45° to +150° C)
Working Pressure
- From 0 to 100 to 0 to 3000 psi (From 0 to 6 to 0 to 250 bar)
