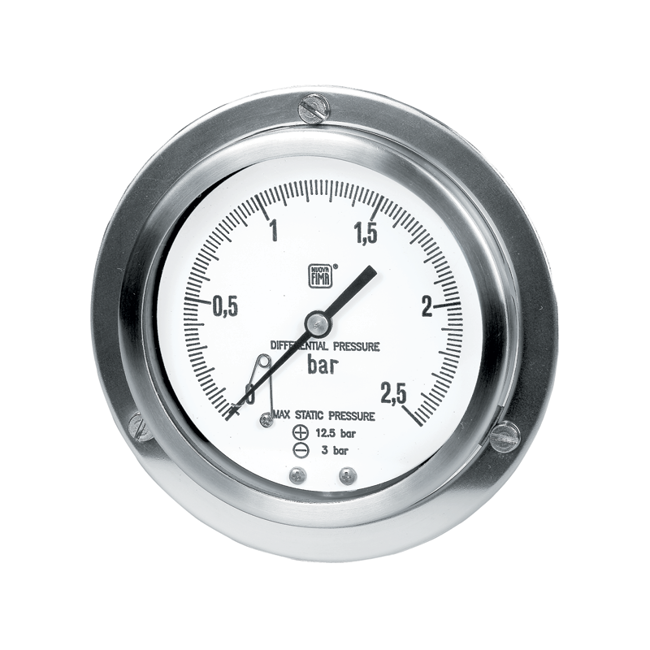

MD18 Differential Pressure Gauge with Double Bourdon Tube
Brand: Nuova FimaThese instruments are used to check filter obstructions, pressure drops, flow rate differences, level, measurements and generally a difference between two pressures of one or different circuits.
The measuring element is formed by two bourdon tubes, acting on the same movement.
In this way the pointer shows only the difference between the two pressures corresponding respectively to upstream and downstream pressure of the circuit.
Specifications
Brand
Accuracy Class
- 1,6 as Per EN 837. (2,5 for Range 0 to 0,4 bar)
Ambient Temperature Range
- -13° to +149° F (-25° to +65° C)
Case
- Stainless Steel
Dial
- Aluminum, White with Black Markings
Elastic Element
- AISI 316L Stainless Steel Bourdon Tube, Seamless
IP Protection Rating
- IP55 as Per EN 60529 / IEC 529 (IP65 when Filled)
Movement
- Stainless Steel
Pointer
- Adjustable, Aluminum, Black
Process Connection
- AISI 316 Stainless Steel
Process Fluid Temperature
- Maximum
Ring
- Stainless Steel Polished, Bayonet Lock
Special Dial
- Ranges Different from Standard, Custom Artworks Available on Request
Thermal Drift
- ± 0,8 % Every ± 50° F (10° C) of Ambient Temperature
Window Material
- Tempered Glass
