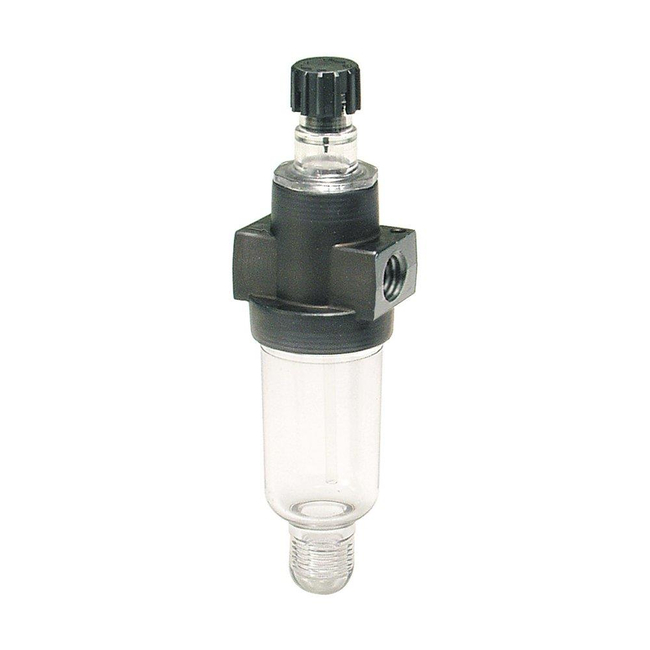

Miniature Mist Lubricator - 04L Series
Brand: Parker HannifinThe 04L is a mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices.
This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream.
Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery.
A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package.
F442 oil is suggested for lubrication and will allow the product to perform at peak performance.
With the various options available the 04L is easily configurable to your application.
Features- Robust construction
- Compact design
- Easily configurable
- Ideal for high and low flow applications that demand uniform lubrication
Specifications
Brand
Approvals & Certifications
- N/A
Body Material
- Zinc
Bowl Material
- Polycarbonate
Drain Option
- N/A
Maximum Operating Flow Rate (dm3/sec)
- 9.4 / 9.4 @ 6.2 bar
Maximum Operating Flow Rate (scfm)
- 20/20 @ 90 psig
Minimum Operating Flow Rate (dm3/sec)
- 0.24
Minimum Operating Flow Rate (scfm)
- 0.5
Operating Pressure (bar)
- 0 to 10.3
Operating Pressure (psig)
- 0 to 150
Operating Temperature (°C)
- 0° to +52° C
Operating Temperature (°F)
- +32° to +125° F
Port Size
- 1/8", 1/4"
Port Type
- BSPP / NPT
Product Type
- Miniature Lubricator
Seal Material
- Nitrile
- General Industrial
- Conveyance
- Production Lines
- Assembly
