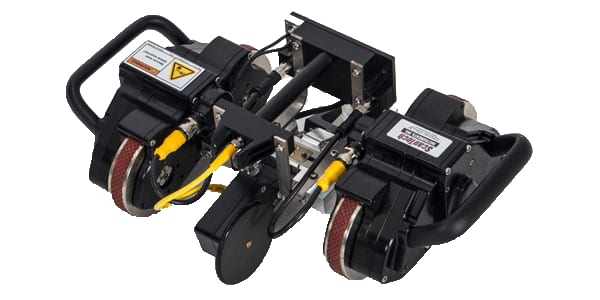

High Performance X-Type Crawler
Brand: MFE Inspection SolutionsThe MFE - HPX Wall Crawler: High Performance X-Type is the most capable and rugged magnetic crawler available.
With it’s high maneuverability, highest power density rare earth magnet motors, lightweight at 12.5 lbs and sealed position encoder for B-Scan Buggy - also available, the MFE - HPX Wall Crawler is the fastest method for inspecting remote access areas and a much safer alternative for tank wall and roof inspection.
Features- Absolutely the Fastest Method for Inspecting Remote Access Areas
- Safer Alternative for Tank Wall and Roof Inspection
- Turn-key System Includes Everything Needed for Ultrasonic Tank Corrosion Inspection
- Large Suspension Travel; the Best Crawler Available for Difficult Obstructions and Surfaces
- Single and Dual Element Transducers for Variable Conditions; Proprietary Shoe Design
- Highly Maneuverable
- Sealed Positional Encoder for a B-Scan Acquisition
- Parts Machined from Billet 6061 Aluminum and 303 Stainless Steel
- Strategic Weight Reduction Cavities
- Tough Hard Coat Anodizing
- Highest Power Density Rare Earth Motors Available
- Proprietary Direct Drive Gear Set Design; No Chains, Belts, Screw Sets, or Clamps to Allow Slippage
- Completely Sealed Unit
- Improved Spring Detent Suspension
- Increased Power, Toque, and Adhesion
Specifications
Brand
Scanner Size
- 10" W x 10.5" L x 5" H
- 254 mm x 267 mm x 127 mm
Scanner Weight
- 12.5 lb
- 5.7 kg
Driver Size
- 10" W x 12.5" D x 4" H excluding handle
- 254 mm x 317 mm x 102 mm
Cable Length
- 100 ft
- 30.5 M
Cable Weight
- 9 lb
- 4 kg
Scanner Speed
- 30 ft/min
- 6"sec or 9.1 M/min
Magnetic Pull
- 150 lb on 0.25 steel plate; 12:1 pull/weight ratio for scanner; 7:1 pull/weight ratio for scanner & entire cable
Tractive Pull
- 72 lb on 0.25 steel plate; 5.75:1 tractive pull/weight ratio
Wheel Base
- 5"
Obstacle Clearance
- Will crawl over a 1.25" obstacle with incline of < 45*
Suspension Conformity
- All wheels contact with 2" elevation of one wheel
Joystick Control
- Remote Control
- 50′ cable
Water System
- AC only (See WS2) or AC/DC Battery (See WS3); 14 gal cubical water reservoir included
Power Requirement
- AC Controller - 110 Vac at 1.35A (150W) (220 Vac compatible); DC Controller - See Battery Option
Scanner Operating Voltages
- ± 12 Vdc drive
- 5 Vdc encoder
Standard Accessories
- Optical Encoder with line driver interface; Single or Dual element irrigated traducer fixture assembly
