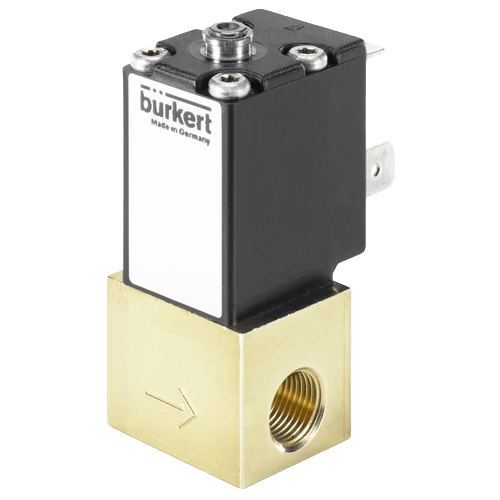

2861 2/2-Way Solenoid Control Valve
Brand: Burkert Fluid Control Systems
Type 2861 is an extremely compact solenoid control valve and is available with an orifice up to 2 mm. It is based on the standard version of Type 2871. It is used as an actuator in closed control loops (pressure, flow, temperature, etc.).
Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times.
Valve control takes place through a PWM signal. The duty cycle of the PWM signal determines the coil current and hence the position of the plunger.
The Burkert control electronics Type 8605 converts an Analog signal to a reference value corresponding to the valve type PWM signal and provides additional functions such as temperature compensation (coil heating), ramp function and the adjustment of minimum and maximum duty cycle/coil current for the control range.
Features- Made for custom engineered applications
- Orifice sizes DN 0.03" to 0.04" (0.8 to 1.2 mm)
- Port connection 1/8”, sub-base or custom engineered armature
1 - 12 of 20 Part Numbers
249 009
- Orifice Size - 1.6 mm
- Port Connection - Flange FK01
- Body Material - Brass
249 896
- Orifice Size - 1 mm
- Port Connection - G 1/8"
- Body Material - Brass
249 897
- Orifice Size - 1.6 mm
- Port Connection - G 1/8"
- Body Material - Brass
255 637
- Orifice Size - 0.8 mm
- Port Connection - Flange FK01
- Body Material - Brass
255 638
- Orifice Size - 0.8 mm
- Port Connection - G 1/8"
- Body Material - Brass
255 640
- Orifice Size - 1.2 mm
- Port Connection - G 1/8"
- Body Material - Brass
265 373
- Orifice Size - 1 mm
- Port Connection - G 1/8"
- Body Material - Stainless Steel
267 087
- Orifice Size - 1.2 mm
- Port Connection - G 1/8"
- Body Material - Stainless Steel
275 069
- Orifice Size - 2 mm
- Port Connection - G 1/8"
- Body Material - Brass
275 070
- Orifice Size - 0.8 mm
- Port Connection - G 1/8"
- Body Material - Stainless Steel
275 071
- Orifice Size - 1.6 mm
- Port Connection - G 1/8"
- Body Material - Stainless Steel
275 072
- Orifice Size - 2 mm
- Port Connection - G 1/8"
- Body Material - Stainless Steel
1 - 12 of 20 Part Numbers
Specifications
Ambient Temperature Range
- 55° C (131° F) - Max.
BSP Connection
- G 1/8" Female
Consumption
- Power: 5 W
Current
- 220 mA (At 24 V-Hold) - Max.
Duty Cycle
- 100 % Duty Cycle Continuous Rating
Electrical Connectors
- Cable Plug Typical 2507
Electrical Contacts
- Normally Closed
Enclosure, Body Material
- Brass
- Stainless Steel
Environmental Protection
- IP65
Flow Rate
- 19 to 97 QNn (L/min)
- Water: 0.018 to 0.090 Kvs (m³/hour)
Frequency
- PWM Control Frequency: 800 Hz
Hysteresis
- < 5 %
Media
- Neutral Gases & Liquids
Mounting Position
- Preferably with Actuator Upright
Nominal Pressure
- psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)
NPT Connection
- 1/8" NPT Female
Orifice Size
- 0.03" to 0.04" (0.8 to 1.2 mm)
Power Supply
- 24 Vdc
Pressure Range
- psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)
Process Temperature
- -10° to 90° C (14° to 194° F)
Ratio
- Span - 1:25
Repeatability
- < 1 % of Full Scale
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Sensitivity
- < 1 % of Full Scale
Solenoid Type
- 2/2-Way
