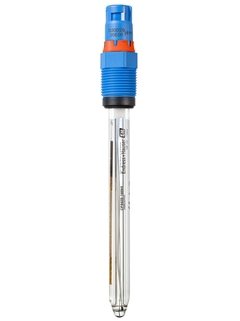

Digital ORP sensor Memosens CPS62E
Brand: Endress+Hauser Group Services AG
Memosens CPS62E is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media, in low conductivities and at high temperatures. Thanks to Memosens 2.0 digital technology, CPS62E combines maximum process integrity with simple operation. It resists moisture and enables lab calibration. It offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.Features
- Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
- Sensor resists strong acids and bases and high organic loads.
- Maintains high accuracy even after CIP/SIP or autoclaving.
- Free from animal-based materials and from acrylamide.
- Upside-down mounting option allows for flexible installation.
- Maximum process safety is ensured by non-contact, inductive signal transmission.
- Minimized process downtime and extended sensor lifetime result in reduced operating costs.
Specifications
Measuring principle
- Sensor ORP / Redox
Application
- Hygiene and sterile applications (sterilizable, autoclavable): Fermenter
- Biotechnology
- Pharma
Characteristic
- Digital ORP electrode for hygienic production processes with ion trap
- for long-term stable reference
Measuring range
- –1 500 to 1 500 mV
Design
- All shaft lengths with temperature sensor
- Advanced gel technology
Material
- Sensor shaft: Glass to suit process
- Metal lead: Ag/AgCl
- Open aperture: Ceramic junction,
- zirconium dioxide
- ORP measuring element: Platinum
- O-ring: FKM
- Process coupling: PPS fiber-glass reinforced
- Nameplate: Ceramic metal oxide
Dimension
- Diameter: 12 mm (0.46 inch)
- Shaft lengths: 120, 225 and 360 mm
- (4.68, 8.77 and 14.04 inch)
Process temperature
- 0 to 100 °C (32 to 212 °F)
- 0 to 140 °C (32 to 284 °F) (140 °C (284 °F) or sterilization only)
Process pressure
- 0.8 to 7 bar (11.6 to 101.5 psi) absolute
Temperature sensor
- NTC 30k
Ex certification
- With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
- hazardous areas Zone 0, Zone 1 and Zone 2
Connection
- Inductive, digital connection head with Memosens 2.0 technology
Ingress protection
- IP68
Additional certifications
- Additional certifications
Hygienic and Sterile Applications:
- Fermenter
- Biotechnology
- Pharma
