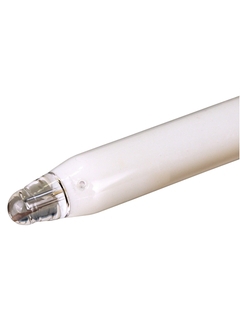

Analog pH sensor Orbipore CPS91
Brand: Endress+Hauser Group Services AG
Orbipore CPS91 is the analog specialist for pH measurement in fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions or emulsions. The open aperture prevents fouling and guarantees you the most reliable measurement under extreme process conditions.Features
- Open aperture for application in heavily soiled media
- Low maintenance and long service life due to stabilized gel filling
- Not affected by fluctuations in pressure and temperature
Specifications
Measuring principle
- Potentiometric
Application
- - Process applications - media with high contamination: emulsions, suspensions, precipitation reactions - min. conductivity >500µS/cm.
Characteristic
- - rapid response - new, stabilised gel insensitive to contaminations
Measuring range
- pH 0-14
Design
- - all shaft lengths with temperature sensor - advanced gel technology
Material
- Glass
Dimension
- Diameter: 12 mm (0.46 inch)
- Shaft lengths: 120, 225, 360 and 425 mm
- (4.68, 8.77, 14.04 and 16,57 inch)
Process temperature
- max. 110°C
- (230°F)
Process pressure
- max. 10 bar
- (145 psi)
Temperature sensor
- Optional with integrated Pt100 or Pt1000.
Ex certification
- Simple operational equipment, no certification necessary.
Connection
- TOP68 plug-in head
Ingress protection
- IP68
- Chemical Processes
- Pulp and Paper
- Flue Gas Cleaning
- Contaminated Media & Suspended Solids
