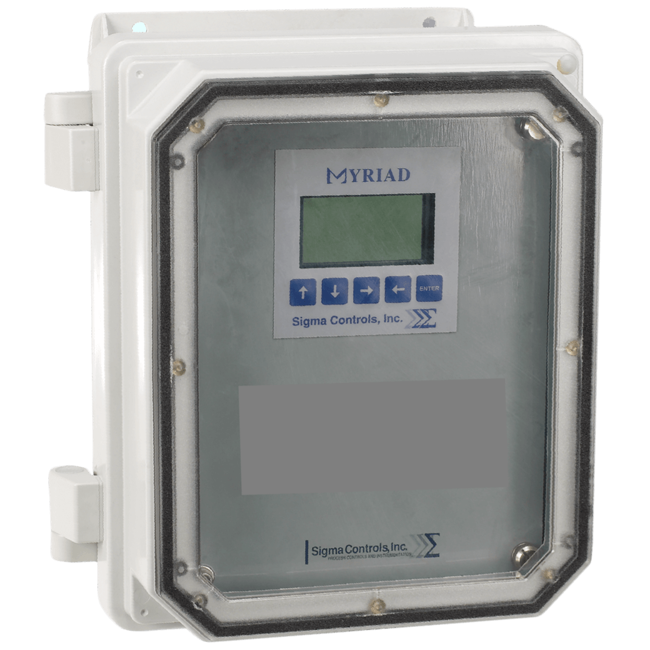

Myriad RTU1 Remote Telemetry Unit
Brand: Sigma Controls, IncThe Myriad RTU1 ushers in a new generation of RTU’s.
With its 20 I/O capability, graphical backlit LCD display, full user programmability, rugged Nema 4X housing, the Myriad RTU1 offers unmatched versatility in small SCADA applications.
Features- Microprocessor based
- Graphic LCD display
- 20 Point linearization
- 5 Function keys
- Isolated 24 Vdc sensor power
- 4-20 mA, 1-5 V, 0-5 V, 0-10 Vdc Input
- 4 Analog input
- 4 Analog output
- 4 Digital input
- 4 Solid state output
- 4 Relay outputs 5 A
- Fully user programmable in English
- 'MV Net' Port RS-485 and user port
- 40 Mile spread Spectrum 900 MHz radio modem or two wire leased line modem
- Integral dipole antenna
Specifications
Brand
Accuracy
- 0.1 % of Calibrated Span
Applications
- Small SCADA Systems
Communication
- Baud Rate: 19,200 bit/sec
- Dipole Antenna
- Lease Line Modem: RS-232 Protocol
- Radio: RS-485 Communication Port
Display
- 128 x 32-bitmapped Graphical Backlit LCD Display
Electrical Connectors
- Removable Screw Terminal Block 28-16 AWG
- Terminal Strip: (40) Pluggable for Ease of Wiring 28-16 AWG
Environmental Protection
- IP66
- NEMA 4X
Humidity
- 0 to 90 % RH, Non-Condensing
Indication
- Lease Line Modem: Digital LED Status Indicators
Input
- Analog: 0-10 Vdc
- Analog: 0-5 V
- Analog: 1-5 V
- Analog: 4-20 mA
Input Impedance
- Current: 100 ohms
- Voltage: 100 kΩ
Linearization
- 20-Point User Configurable
Operating Temperature
- 0° to 65° C (32° to 150° F)
Output
- Analog: 0-10 V
- Analog: 0-20 mA
- Analog: 0-5 V
- Analog: 4-20 mA
Power
- Sensor Power: 24 Vdc at 100 mA
Power Requirement
- 120-230 Vac
Relay Output
- 5 A
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Switch Type
- SPDT, Form C
