Status Instruments Temperature Transmitte, STA206

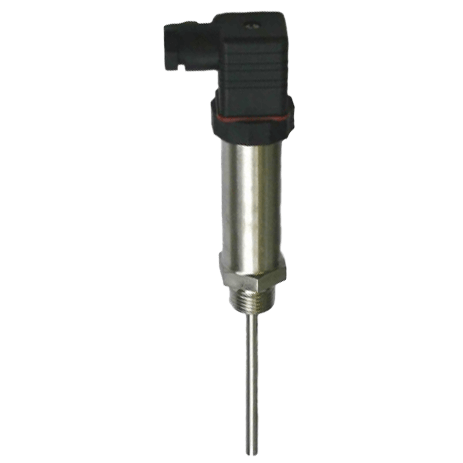

STA206 Temperature Transmitter

Brand: Status Instruments
Add Product to My Catalog

Status Instruments Temperature Transmitte, STA206
The STA206 is a cost effective sensor and transmitter assembly housed in a 316 Stainless Steel body with an integral Pt100 sensor, transmitter and DIN connector.

The integrated temperature transmitter is based around our SEM206P.

PC configuration allows the user to select Range, units and Burnout direction, without requiring calibration equipment.

Configuration is performed quickly using our USB port driven configurator by simply connecting two clips to the STA206 loop terminals and following the software instructions.

Calibration set up may be saved as a file on the PC for later use.

The STA206 incorporates the latest digital technology to ensure accurate drift free performance.

1 - 12 of 399 Part Numbers
STA206/1
STA206/1
  • Dimensions - 1 Custom Dimension in mm
STA206/10
STA206/10
  • Dimensions - 10 Custom Dimension in mm
STA206/100
STA206/100
  • Dimensions - 100 mm
STA206/101
STA206/101
  • Dimensions - 101 Custom Dimension in mm
STA206/102
STA206/102
  • Dimensions - 102 Custom Dimension in mm
STA206/103
STA206/103
  • Dimensions - 103 Custom Dimension in mm
STA206/104
STA206/104
  • Dimensions - 104 Custom Dimension in mm
STA206/105
STA206/105
  • Dimensions - 105 Custom Dimension in mm
STA206/106
STA206/106
  • Dimensions - 106 Custom Dimension in mm
STA206/107
STA206/107
  • Dimensions - 107 Custom Dimension in mm
STA206/108
STA206/108
  • Dimensions - 108 Custom Dimension in mm
STA206/109
STA206/109
  • Dimensions - 109 Custom Dimension in mm
1 - 12 of 399 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • 0.2° C (0.36° F) ± 0.05 % of Reading Plus Sensor Error

Approvals & Certifications

  • EMC BS EN 61326

BSP Connection

  • 1/2" BSP Male

Communication

  • Digital Technology

Configuration

  • USB Port

Current

  • < 200 μA - Excitation Current

Enclosure, Body Material

  • 316 Stainless Steel

Length

  • 50 to 150 mm - Immersion Length

Linearization

  • BS EN 60751 (IEC 751)

Operating Temperature

  • -50° to 200° C (-58° to 392° F)

Output

  • < 3.9 mA - Min. Output (In Low Burn-Out Condition)
  • 21.5 mA - Max.
  • 2-Wire Current Loop
  • 4-20 mA

Output Load

  • (Vsupply-10) / 21 kΩ, max.

Power Supply

  • 10-30 Vdc

Response Time

  • 1 second + Sensor Lag

Sensor Protection

  • Burn-Out

Sensor, Probe Connection

  • DIN Connector Screw Terminal

Sensor, Probe Type

  • Pt100 Class A

Span - Minimum

  • 25° C (77° F)

Thermal Drift

  • 0.0025 %/°C

Turn-On Time

  • 4 seconds (Output < 4 mA During Start-Up)

Update Time

  • 1 Minute to Full Accuracy - Warm-Up
  • 500 ms
