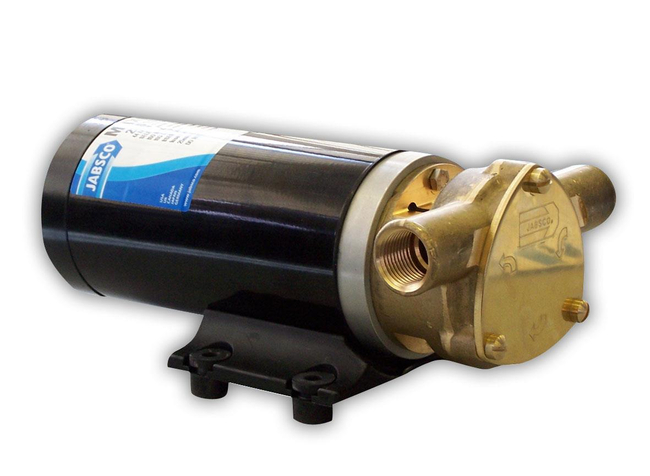

Jabsco Maxi Puppy Bronze DC Pump, 23610 Series

23610 Series Maxi Puppy Bronze DC Pump

Brand: Jabsco
Add Product to My Catalog

A high-pressure and high-flow pump for bilge pumping, the Maxi Puppy 3000 is self-priming up to 8' (2.4m), and offers an output of 720 GPH (2725 LPH).

It’s built to last with a bronze pump head and an oil-resistant nitrile impeller.
Features
  • Small bilge debris present no problem to these bronze bodied, flexible impeller pumps
  • Simple design means fewer wearing parts
  • ISO 8846 MARINE (Ignition protection)
  • ISO 8849 MARINE (Bilge pump standard)

1 - 2 of 2 Part Numbers
23610-3003
23610-3003
Jabsco Maxi Puppy Bronze DC Pump, 23610 Series
  • Voltage: 12 V
  • Maximum Amp Draw: 21 Amp
  • Maximum Fuse Size: 25 Amp
  • Minimum Wire Size: 84 / 0.30 mm (6 mm²)
23610-3103
23610-3103
Jabsco Maxi Puppy Bronze DC Pump, 23610 Series
  • Voltage: 24 V
  • Maximum Amp Draw: 11 Amp
  • Maximum Fuse Size: 15 Amp
  • Minimum Wire Size: 50 / 0.30 mm (4 mm²)
1 - 2 of 2 Part Numbers

Specifications

Brand

Body Material

  • Bronze

Impeller

  • Nitrile

Motor Type

  • Permanent Magnet, Continuous Rated

Port Type

  • 1/2" BSP or 1" Hose Barb

Seal

  • Lip Typical

Voltage

  • 12 or 24 Vdc

Weight

  • 3.4 kg (7.5 lb)
