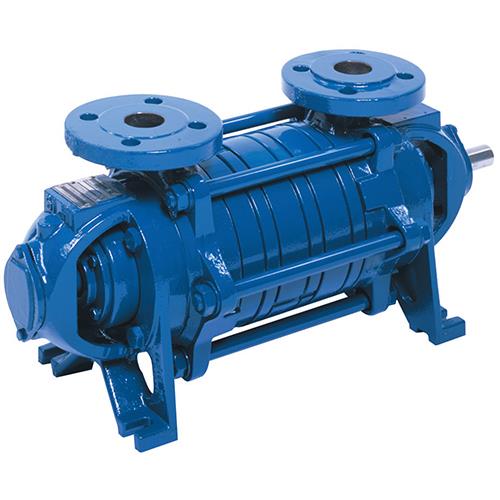

AEH Industrial Process and Chemical Pump

Brand: Flowserve SIHI
Add Product to My Catalog

Pumps of the series AEH-X/AEH according to EN 734 have a segmental type construction with open vane wheel impellers.

This pump is available in a normal industrial design with one liquid surrounded slide bearing and one ball bearing, or in a heavy-duty construction with a double ball bearing design.
Features
  • Especially developed for difficult applications in all industry sectors and are thus applied when pure, turbid or aggressive media have to be pumped under difficult conditions without any problems.
  • Different material possibilities with uniform dimensions and performance characteristics, as well as the standard exchangeable components, make the AEH-X/AEH particularly recommendable as a universal pump for all possible pumping problems.
  • Wide application range in many sectors such as the chemical , petrochemical, pharmaceutical, OEM, oil, and food industries.

Specifications

Brand

Casing Pressure

  • Up to 40 bar

Flow Rate

  • Up to 35 m³/h

Head

  • Up to 354 m

Materials

  • Grey Cast Iron, Nodular Iron, Stainless Steel

Shaft Seals

  • Gland packing, mechanical Seal, magnetic drive

Size Range

  • 6 Sizes / up to 8 Stages

Speed

  • Maximum 1800 rpm

Temperature

  • Maximum 180° C

Documentation

Brochure
