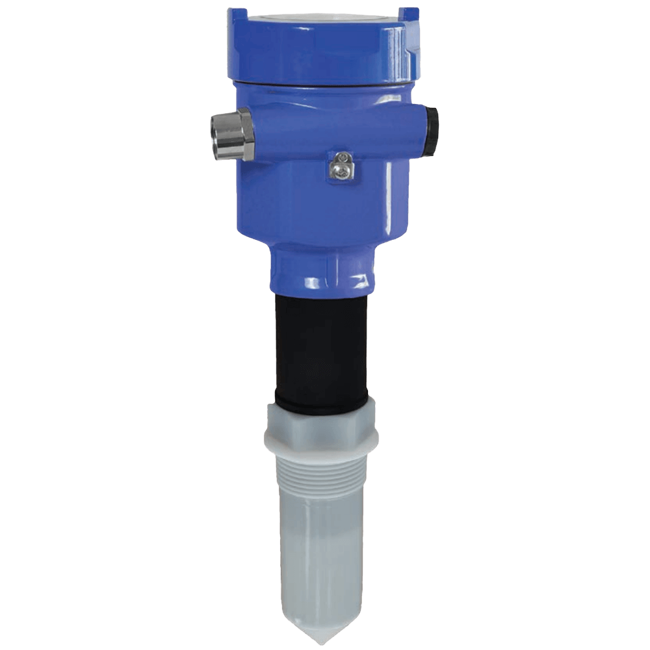

EchoPulse LR10 Pulse Radar Level Transmitter
Brand: Flowline
The general-purpose 26 GHz, pulse radar level transmitter provides continuous level measurement up to 32.8 feet (10 meters) with a 4-20 mA signal output, and is configured via its integral push button display module.
The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material.
Select this sensor for easy application conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting. Typical applications include chemical bulk storage and tanker trucks.
Features- PTFE encapsulated antenna and mount for corrosive media
- Simple configuration via integral push button display module
- 26 GHz, pulse radar is unaffected by vapor or condensation
- 12" (30 cm) dead band enables utilization of the entire tank
- LCD displays level in feet or meters with percent of span bar
- Optional display mode indicates the echo signal return curve
- Auto-temperature compensation for accurate measurement
- Fail-safe diagnostics with selectable signal fail-safe outputs
- Recognition, storage and rejection of false echo signal returns
- Rugged IP 67 aluminum enclosure with polycarbonate window
- Beam Angle: 22°
Specifications
Brand
Accuracy
- ± 5 mm
Approvals & Certifications
- CE
- cTÜVus
- FCC
- RoHS
Conduit Connection
- 1/2" NPT Connector
- M20 x 1.5 Plug
Configuration
- Push Button
Consumption
- Maximum
Deadband
- 12" (304.8 mm)
Display
- Dot Matrix LCD
Enclosure, Body Material
- Aluminum with Silicone Gasket
- PBT FR Neck & Wrench Flat
Environmental Protection
- IP67
Frequency
- 26 GHz
Gasket Material
- Silicone
Materials of Construction
- Antenna: PTFE
Media
- Liquids
NPT Connection
- 1-1/2" NPT Male
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: -1 to 3
- kPa: -100 to 300
- psi: -14.5 to 43.5
Process Temperature
- -40° to 130° C (-40° to 266° F)
Range
- 1 to 32.8 ft (0.30 to 10 metres)
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Supply Voltage
- 16-26 Vdc
Window Material
- Polycarbonate
- Above Grade Metal or Reinforced Concrete Tanks, Below Grade Tanks of Any Material
- Chemicals or Water Storage Applications
