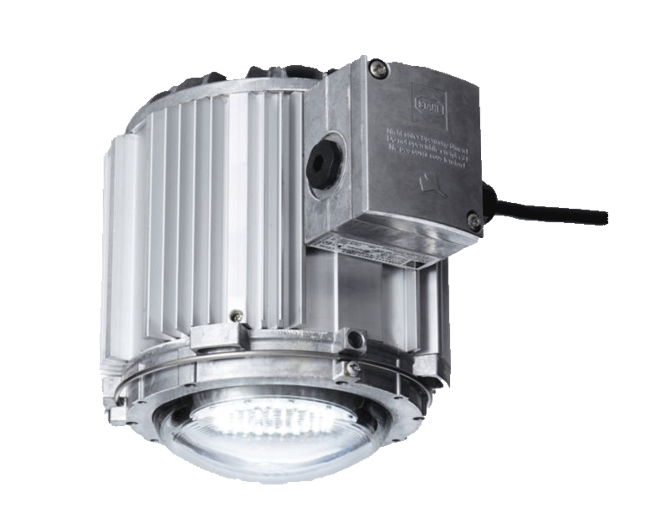

Pendant Light Fittings Series 6050/5

Pendant Light Fittings Series 6050/5

Brand: R. STAHL AG
Add Product to My Catalog

A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments.

There is also the option to add a highly resistant coating.

The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
Features
  • Low maintenance and extremely long service life with LEDs (up to 50,000 H)
  • Suspended by means of ring bolts or pivoting mounting brackets
  • Ex Zones 1, 2, 21 and 22
  • IP68 level of protection (10 m)

1 - 9 of 9 Part Numbers
214370
214370
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - According to the order
  • Stopping plug - According to the order

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 70 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T4 Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T4 Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/51..-01061-1..0.-11
  • Title Product Variant Technical Data - 6050/51..-01061-1..0.-11 Pendlight size1
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Lamp wattage - 65 W
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 268.000 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - According to the order
  • Weight - 8.900 kg
  • Width - 228.000 mm
214401
214401
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - According to the order
  • Stopping plug - According to the order

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Lamp wattage - 65 W
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 70 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Dust explosion protection IECEx - Ex tb IIIC T100 °C Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T4 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T4 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/51..-01061-1..0.-21
  • Title Product Variant Technical Data - 6050/51..-01061-1..0.-21 Pendlight size1
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 268.000 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - According to the order
  • Weight - 9.100 kg
  • Width - 228.000 mm
214402
214402
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - According to the order
  • Stopping plug - According to the order

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T6 Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/51..-01061-1..0.-31
  • Title Product Variant Technical Data - 6050/51..-01061-1..0.-31 Pendlight size1
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Lamp wattage - 65 W
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 268.000 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - According to the order
  • Weight - 9.100 kg
  • Width - 228.000 mm
257613
257613
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)
257614
257614
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - 1 x M25 Ø 7 – 17 mm
  • Stopping plug - 1 x M25 x 1.5
  • Wire guard - Yes

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Lamp wattage - 65 W
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 70 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T100 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T80°C, T100°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex d e op is IIC T4/T6 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T4 Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/5121-01061-11100-11
  • Title Product Variant Technical Data - 6050/5121-01061-11100-11 Pend. LF Zn1Sz1
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 283.800 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Reflector - Yes
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - For wall and ceiling mounting
  • Weight - 11.300 kg
  • Width - 228.000 mm
257615
257615
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - 1 x M25 Ø 7 – 17 mm
  • Stopping plug - 1 x M25 x 1.5
  • Wire guard - No

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Lamp wattage - 65 W
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 70 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T100 °C Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection EAC - Ex tb IIIC T80°C, T100°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T4 Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection EAC - 1 Ex d e op is IIC T4/T6 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T4 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/5121-01061-10000-11
  • Title Product Variant Technical Data - 6050/5121-01061-10000-11 Pend. LF Zn1Sz1
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 268.000 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Reflector - No
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - For wall and ceiling mounting
  • Weight - 11.000 kg
  • Width - 228.000 mm
257617
257617
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)
258245
258245
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - 1 x M25 Ø 7 – 17 mm
  • Stopping plug - 1 x M25 x 1.5
  • Wire guard - No

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Lamp wattage - 65 W
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T80 °C, T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T6 Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection EAC - 1 Ex d e op is IIC T4/T6 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T6 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/5121-01061-10000-31
  • Title Product Variant Technical Data - 6050/5121-01061-10000-31 Pend.L. Z1 LED
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 268.000 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Reflector - No
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - For wall and ceiling mounting
  • Weight - 11.000 kg
  • Width - 228.000 mm
258246
258246
R. STAHL Pendant Light Fitting LED
Low maintenance and extremly long service life with LEDs (up to 50,000 H)

Suspended by means of ring bolts or pivoting mounting brackets

Ex Zones 1, 2, 21 and 22

IP68 level of protection (10 m)

Ambient Conditions

  • Ambient temperature - -40 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -40 °C

Components

  • Screw connections - 1 x M25 Ø 7 – 17 mm
  • Stopping plug - 1 x M25 x 1.5
  • Wire guard - Yes

Electrical Data

  • Frequency range - 50 - 60 Hz
  • Nominal current - 0.400 - 0.400 A
  • Rated operational voltage AC - 100.00 - 277.00 V
  • Rated operational voltage DC - 176.00 - 264.00 V
  • Rated operational voltage DC max. - 264.00 V
  • Rated operational voltage DC min. - 176.00 V
  • Rated operational voltage max. AC - 277.00 V
  • Rated operational voltage min. AC - 100.00 V

Explosion Protection

  • Ambient temperature °C - -40 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 11 ATEX 1045
  • ATEX gas certificate - PTB 11 ATEX 1045
  • Certificate EAC - TS RU S-DE.GB04.B.00430
  • Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T.. Db
  • Dust explosion protection EAC - Ex tb IIIC T80 °C, T100 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T.. Db
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T.. Gb
  • Gas explosion protection ATEX - II 2 G Ex d e op is IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex d e op is IIC T4/T6 Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T.. Gb
  • Gas explosion protection IECEx - Ex d e op is IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 12.0017
  • IECEX gas certificate - IECEx PTB 12.0017

General

  • Functional Description - A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
  • Highlights - Low maintenance and extremly long service life with LEDs (up to 50,000 H) Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 IP68 level of protection (10 m)
  • Product Description - Pendant light fitting LED
  • Product Type - 6050/5121-01061-11100-31
  • Title Product Variant Technical Data - 6050/5121-01061-11100-31 Pend.L. Z1 LED
  • WebCode - 6050B

Lighting Data

  • Colour rendering - ≥ 70
  • Colour temperature - 5700 K
  • Lamp - LED
  • Lamp type - LED
  • Lamp wattage - 65 W
  • Light colour - Cool white
  • Luminaire efficacy - 82 Im/W
  • Luminous flux - 5300 lm
  • Number of Lamps - 1

Mechanical Data

  • Connection terminals finely-stranded max. - 4.00 mm²
  • Connection terminals solid max. - 4.00 mm²
  • Degree of protection (IP) - IP66 / IP68 (10 m)
  • Design size - 1
  • Enclosure colour - Standard
  • Enclosure material - Aluminium, Seawater-resistant
  • Height - 283.800 mm
  • Length - 296.000 mm
  • Protection class - I (inner + outer PE)
  • Protective glass material - Thermally shock-resistant Borosilicate glass
  • Reflector - Yes
  • Sealing material - Silicone
  • Type of connection cable - Finely stranded, solid
  • Version - For wall and ceiling mounting
  • Weight - 11.300 kg
  • Width - 228.000 mm
1 - 9 of 9 Part Numbers

Documentation

Data Sheet

Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
