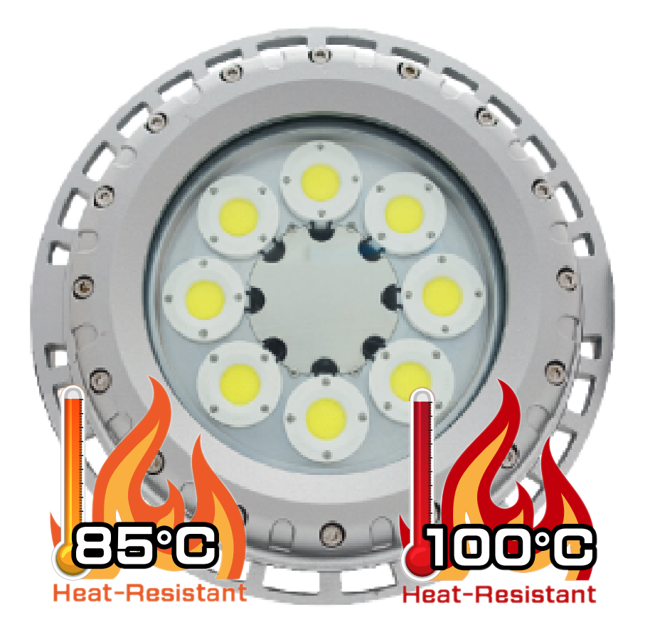

L1512D High Humidity & Heat Resistant LED Lighting
Brand: Top Hi-Tech Inc
- UL 1598 Luminaires
- CSA C22.2 No.250.0
- IP67 / NEMA 6
- AC LED Driver-less Technology
- Intended for Use in High Ambient Temperature Environments
- Up to 100° C Heat Resistant
Specifications
Brand
Certifications & Approvals
- UL
- CSA
Environmental Protection
- NEMA 6
- IP67
Rated Voltage (±10%)
- 85° C Heat Resistant Application: 120 V / 277 V / 347 V / 480 Vac
- 100° C Heat Resistant Application: 120 V / 277 Vac
Watts (±10%)
- 85° C Heat Resistant Application: 140 W / 160 W / 180 W
- 100° C THeat Resistant Application: 140 W / 160 W
Amps
- 180 W - 120 V: 1.50 A, 277 V: 0.65 A, 347 V: 0.52 A, 480 V: 0.38 A
- 160 W - 120 V: 1.33 A, 277 V: 0.58 A, 347 V: 0.46 A, 480 V: 0.33 A
- 140 W - 120 V: 1.17 A, 277 V: 0.51 A, 347 V: 0.40 A, 480 V: 0.29 A
Color of LED Light
- 5000K (Cool White)
- 3000K (Warm White)
Ambient Temperature
- 85° C Heat Resistant: 66° to 85° C (150.8° to 185° F)
- 100° C Heat Resistant: 86° to 100° C (186.8° to 212° F)
Power Factor
- 85° C: cos ≥ 0.9, cos ≥ 0.87 (480 V)
- 100° C: cos ≥ 0.9
CRI
- Cool White ≥ 70
- Warm White ≥ 80
Lumen (± 10%)
- 5000K (140 W): 12339 lm
- 5000K (160 W): 14003 lm
- 5000K (180 W): 15811 lm
- 3000K (140 W): 11911 lm
- 3000K (160 W): 13750 lm
- 3000K (180 W): 15504 lm
Beam Angle
- X-110°
- Y-110°
Frequency
- 50/60 Hz
Environmental Protection
- NEMA 6
- IP67
Enclosure / Body Material
- Enclosure: Aluminum Alloy
Material of Construction
- Screws: Stainless Steel
- Tempered Glass: IEC Standards Impact resistant > 4 Joule
LED Service Life
- 60,000 hours
Entrance Thread
- 1 x NPT 3/4"
Net Weight
- 18.3 kg (40.3 lb)
- Pulp & Paper Industry
- Power Plants
- Smelter
- Casthouse
- Automotive Industry
- Textile Industry
- Cable Manufacturing
- Glass Factory
