Gems Economical Miniature Vaccum Switch, PS82

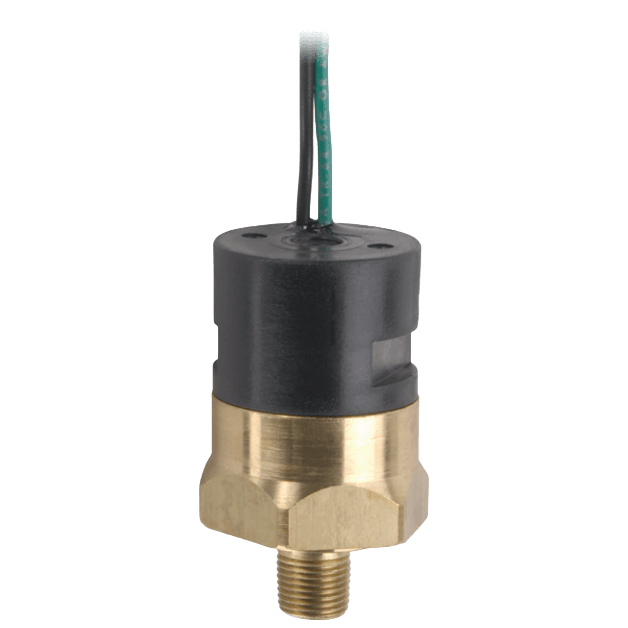

PS82 Economical Miniature Vaccum Switch

Brand: Gems Sensors, Inc
Add Product to My Catalog

These miniature vacuum switches, based on our proven PS41 series, are designed for demanding applications where space and/or price are strong concerns.
Features
  • 5" to 28" Hg (169 to 948 mbar)

Specifications

Brand

Accuracy

  • psi: 0.34 to 0.79 (kPa: 2.4 to 5.5, Mbar: 24 to 55) + 2 % of Setting

Approvals & Certifications

  • CE

BSP Connection

  • 1/4" BSP Male
  • 1/8" BSP Male

Burst Pressure

  • psi: 700 (kPa: 4,826, bar: 48.26)

Deadband

  • Average Deadband - psi: 1.49 (kPa: 10.3, Mbar: 103) + 7 % of Setting
  • Average Deadband - psi: 3.0 (kPa: 20.7, Mbar: 207) + 8 % of Setting

Diaphragm Material

  • EPDM
  • Neoprene
  • Nitrile
  • Viton

Electrical Connectors

  • 1/2" NPT Male Conduit with Flying Leads
  • 18 AWG PVC Cable
  • Deutsch Connector, Male, DT04 Series
  • Flying Leads with PVC Shrink Tubing
  • Right Angle DIN 43650A 9 mm Cable Clamp
  • Right Angle DIN 43650A with 1/2" NPT Female Conduit
  • Spade Terminal
  • Weather Pack Connector, Female
  • Weather Pack Connector, Male

Electrical Contacts

  • Gold
  • Normally Closed
  • Normally Open

Electrical Rating

  • 1 A at 125 Vac
  • 1 A Resistive, 0.5 A Inductive at 28 Vdc
  • 10.1 A at 125/250 Vac
  • 2 A at 125/250 Vac
  • 5 A at 125/250 Vac
  • 5 A Resistive, 3 A Inductive at 28 Vdc

Environmental Protection

  • IP00: Terminals
  • IP65: DIN 43650A, Flying Leads, Conduit with Flying Leads
  • IP66

Materials of Construction

  • Fitting: 316 Stainless Steel
  • Fitting: Brass

NPT Connection

  • 1/4" NPT Male
  • 1/8" NPT Male

Pressure Range

  • psi: 2.45 to 13.75 (kPa: 16.93 to 94.82, Mbar: 169 to 948)

Proof Pressure

  • psi: 0 to 350 (kPa: 0 to 2,413, bar: 0 to 24.13)

SAE Connection

  • 7/16"-20 SAE Male
  • 9/16"-18 SAE Male

Set Point - Decreasing

  • inHg: 5 to 28
  • kPa: 16.93 to 94.82
  • mbar: 169 to 948
  • psi: 2.45 to 13.75

Set Point - Increasing

  • inHg: 5 to 28
  • kPa: 16.93 to 94.82
  • mbar: 169 to 948
  • psi: 2.45 to 13.75

Spring Material

  • 316 Stainless Steel

Switch Type

  • SPDT
  • SPST

Temperature Range

  • -18° to 121° C (0° to 250° F) for Viton
  • -23° to 121° C (-10° to 250° F) for EPDM & Neoprene
  • -9° to 121° C (15° to 250° F) for Nitrile
