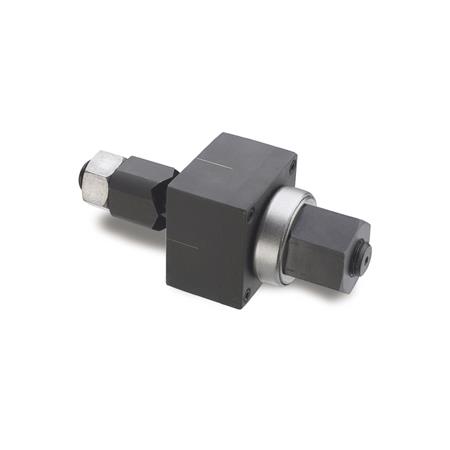

GN 123 Sheet Metal Punch for Mounting Latch

Brand: Otto Ganter GmbH + Co. KG

Information:
  • These sheet metal punches GN 123 allow the operator to punch in a simple way fixing holes in sheet metal doors for latches with square V14 and V20.
  • Sheet metal punches GN 123 are ideally suited for punching holes into sheet metal up to 2 mm thickness.
  • Assembly instruction Set predrill hole d.
  • We recommend using an adhesive tape with the centre of the punch hole and the datum lines showing.
  • Insert pull bolt with punch.
  • Attach the die, align along the datum lines and fix in place with the hexagon nut / set punch hole.
  • Documentation
