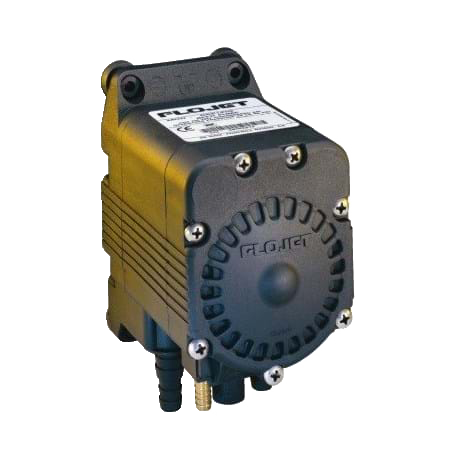

G58 Series Juice Condiment Pump

Brand: Flojet
Add Product to My Catalog

Juice Concentrates and Condiments.
Features
  • Enlarged diameter check valves, capable of passing pulp and particulate easily.

  • Highest flow rate available. Capable of CO2 inlet pressures up to 90 psi (6.2 bar).

  • Ultimate performance and reliability with extended service life.

  • Built-in auto shutoff, automatically shuts off pump when bag is empty and restarts when a full bag is connected.

  • Quiet operation with exhaust muffler.

  • Easy installation with all quick disconnect ports.

  • High CO2 inlet supply capability, exceeds FCB machine requirements.

  • Service life over 100,000 gallons (378,000 L).

    • 1 - 2 of 2 Part Numbers
    G58-1012 G58 Series Juice/Condiment Pump
    G58-1012 G58 Series Juice/Condiment Pump
    • Approvals - CE, NSF Standard 18
    • Dimensions (H x W x D) - 133.8 x 81.5 x 116.3 (mm)
    • Displacement US Gallons (litres) - 3.2 oz (91ml) per cycle
    • Flow Rate US gallons (litres) - 6.0 oz/sec (177.4ml/sec) - open flow
    • Gas/Air Inlet Fitting - 1/4" (6.35mm) CO2 Shutoff Brass
    • Materials of Construction - (wetted parts:) Polypropylene, Santoprene®, EPDM, AISI 303 & 304 Stainless Steel
    • Maximum Liquid Inlet Pressure - 30 psi; 2.1 bar max
    • Operating pressure - 20 - 90 PSI; 1.4 - 6.2 barmax
    • Operating temperature - 34°F to 120°F; 1.1°C to 49°C
    • Product Inlet Fitting - 3/8 IN (9.52mm) barbed straight Stainless Steel
    • Product Outlet Fitting - 3/8 IN (9.52MM) barbed straight Stainless Steel
    • Pump Drive - CO2 gas, Nitrogen or compressed dry filtered air
    • Warranty period - 5 years
    • Weight - 1.24lbs.; 0,56kg
    G58-1022S/T G58 Series Juice/Condiment Pump
    G58-1022S/T G58 Series Juice/Condiment Pump
    • Gas/Air Inlet Fitting - 1/4" (6.35mm) CO2 Shutoff Brass Straight
    • Product Inlet Fitting - 3/8" (9.52mm)Barbed Straight Stainless Steel
    • Product Outlet Fitting - 3/8" (9.52mm)Barbed Straight Stainless Steel
    1 - 2 of 2 Part Numbers

    Specifications

    Brand

    Dimensions

    • 13.38 x 8.15 x 11.63 (cms)
    • 5.27 H x 3.21 W x 4.58 D (inches)

    Displacement

    • 3.2 oz. Per Cycle

    Materials of Construction

    • Polypropylene, Santoprene, EPDM, AISI 303 & 304 Stainless Steel

    Maximum Liquid Inlet Pressure

    • 2.1 bar
    • 30 psi

    Operating Pressure

    • 1.4 - 6.2 bar
    • 20 - 90 psi

    Power Source

    • CO₂ Gas, Nitrogen or Compressed Dry Filtered Air

    Self-Priming

    • Up to 6 feet (1.83 m)

    Temperature Range

    • 1.1° - 49° C
    • 34° to 120° F

    Weight

    • 0.56 kg
    • 1.24 lb
