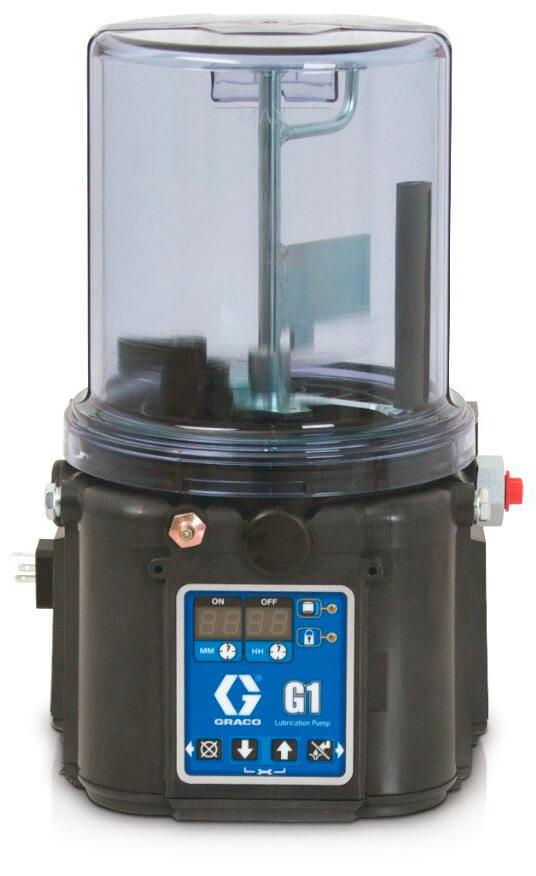

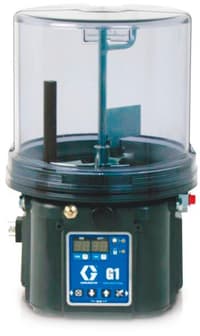

G1 Plus Automatic Lubrication for Series Progressive Metering Systems

G1 Plus Automatic Lubrication for Series Progressive Metering Systems

Brand: Graco, Inc
Add Product to My Catalog

G1 Plus Automatic Lubrication for Series Progressive Metering Systems G1 Plus Automatic Lubrication for Series Progressive Metering Systems
Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication.

Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.
Features
  • Built-in on/off timer.
  • Optional low level feature that shuts down the pump when empty.
  • Manual run initiates lube cycle on-demand (remote option also available).
  • Choice of 2, 4, or 8 liter reservoirs.
  • Connect to DC (12 or 24v) and AC (90-240v).

Specifications

Brand

100-240 Vac

  • 88 - 264 Vac, 0.8 A Current, 90 VA Power, 47/63 Hz, Single-Phase, Inrush/Locked Rotor, Max. 40 A (1 ms)

12 Vdc

  • 9-16 Vdc, 5 A Current, 60 W, Inrush/Locked Rotor 12 A

24 Vdc

  • 18-32 Vdc, 2.5 A Current, 60 W, Inrush/Locked Rotor 6 A

Ambient Temperature Range

  • -40° to 70° C

Grease Models

  • Grease NLGI 000 - #2

IP Protection Rating

  • IP69K

Maximum Working Pressure

  • 35.1 MPa, 351.6 bar

Oil Models

  • At Least 40 cSt Oil.

Pump Outlet

  • 1/4-18 NPSF. Mates with 1/4-18 Male NPT Fittings

Pump Output

  • 4 cm³/minute

Pumps

  • 1

Reservoir Size

  • 2 Liters, 4 Liters, 8 Liters

Sound Data

  • Lt, 60 dB

Wetted Parts

  • Nylon 6/6 (pa), Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber (Buna-N), Bronze, Nickel-Plated Alnico, Chemically Lubricated Acetal, Aluminum,

With Follower Plate

  • 6.44 kg

Without Follower Plate

  • 6.03 kg

Documentation

Document

Instructions
