Add the MM Namur Magnetic Proximity Sensor to your store or catalog

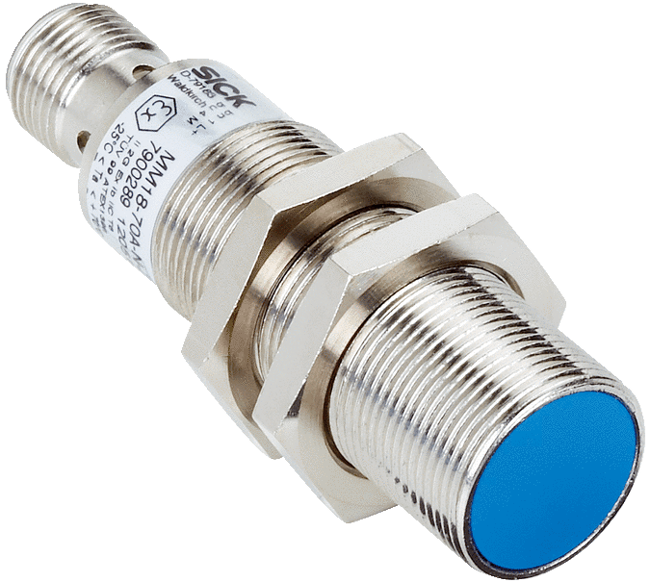

MM Namur Magnetic Proximity Sensor

Brand: Sick AG

MM NAMUR magnetic proximity sensors provide large operating distances that can reliably detect magnetic objects. Magnetic proximity sensors are resistant to dust, heat and vibration, making them ideal for use in harsh environments – even highly explosive atmospheres.

By using magnetic conductors, these sensors are able to reliably detect objects over greater distances. The NAMUR design for hazardous areas is available in MM12 and MM18 designs.

Features

NAMUR version ensures safe function in explosion-hazardous areas
Non-contact operation eliminates interference from dirt, dust and vibrations, increasing sensor life and reducing maintenance costs
Large sensing ranges ensure reliable switching, even with target position tolerances
Universal use since detection through other objects, such as plastic walls or non-magnetic stainless steel walls, is also possible

1 - 6 of 6 Part Numbers

per page:

1026614

Sensing Range - Max. 120 mm
Connection Type - Male Connector M12, 4-Pin
Type - MM18-00A-N-ZCO

1046761

Sensing Range - Max. 90 mm
Connection Type - Cable with Connector M9, 5-Pin, with Knurled Nuts, 0.8 m
Type - MM12-90A-N-ZUD

1102542

Sensing Range - Max. 90 mm
Connection Type - Cable with Connector M9, 5-Pin, with Knurled Nuts, 0.8 m
Type - MM12-90A-N-ZUD

1102546

Sensing Range - Max. 120 mm
Connection Type - Male Connector M12, 4-Pin
Type - MM18-00A-N-ZCO

7900286

Sensing Range - Max. 60 mm
Connection Type - Cable, 2-Wire, 2 m*
Type - MM12-60A-N-ZWO

7900287

Sensing Range - Max. 60 mm
Connection Type - Male Connector M12, 4-Pin
Type - MM12-60A-N-ZCO

1 - 6 of 6 Part Numbers
