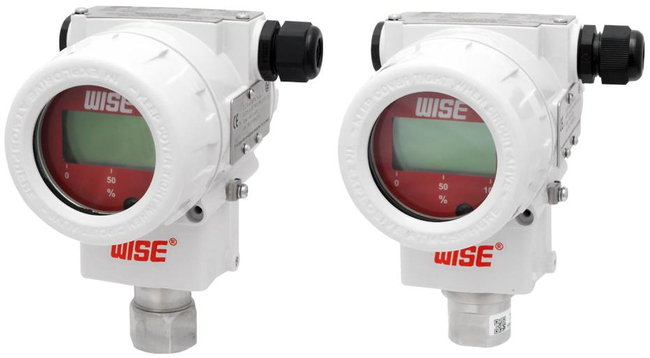

Absolute Pressure Transmitter SMT2003
Brand: Wise Control IncThe high performance pressure transmitter SMT2003 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.
The key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
SMT2003 outputs a 4~20 mA DC signal corresponding to the measured pressure.
Specifications
Brand
Accuracy
- ± 0.05 % of Calibrated Span
- ± 0.1 % of Calibrated Span
- ± 0.075 % of Calibrated Span
Isolating Diaphragm
- 316L Stainless Steel / Hastelloy C
Measurement Medium
- Gas, Steam & Liquid
Output
- 4-20 mA with HART Protocol
Range Limits
- 0 ~ 40 kPa to 0~30 bar
Stability
- 10 Years Stability
- 0.15 % of URL
Temperature Compensation
- High Sensitivity Temperature Sensor Packaged in the Sensor
Turn Down
- Adjustable up to 100: 1 Range Ability
