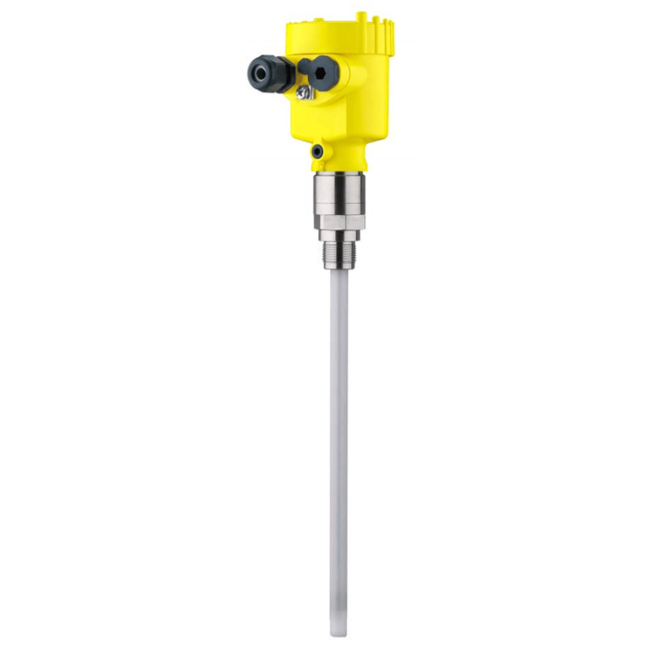

Vegacap 63 Capacitive Level Switch
Brand: VEGAThe Vegacap 63 point level sensor can be used universally for measurement in non-abrasive liquids and bulk solids.
The rod electrode is fully insulated and the proven mechanical construction ensures high functional safety.
Features- Long lifetime and low maintenance requirement through robust mechanical construction
- Savings through simple mounting and setup
- Maximum utilization of vessel, because measurement over entire probe length
Specifications
Brand
Ambient Temperature Range
- -40° to 80° C (-40° to 176° F)
Applications
- Conductive Liquids
Approvals & Certifications
- ATEX
- GL
- IEC
- LRS
BSP Connection
- G 1/2"
Enclosure, Body Material
- Aluminum
- Plastic
- Stainless Steel
Environmental Protection
- IP67
Flange Size - 2” (DN 50)
- PN 40
Flange Size - 3” (DN 80)
- PN 40
Flange Size - 4” (DN 100)
- PN 16
Length
- 19.69 feet (6 m) - Sensor Length
NPT Connection
- 1/2" NPT
Operating Voltages
- 20-253 Vac
- 20-253 Vdc
- 50/60 Hz
Output
- 10-400 mA
Output Format
- Relay Output
- Transistor Output
Pressure Range
- psig: -14.5 to 928 (kPa: -100 to 6400, bar: -1 to 64)
Process Temperature
- -50° to 200° C (-58° to 392° F)
Response Time
- 0.7 seconds - Switching Delay (ON/OFF)
Sensor, Probe Connection
- 2-Wire
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Wetted Materials
- Polyethylene - PE
- PTFE
