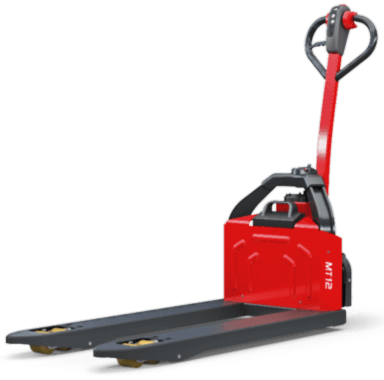

MT12 Pallet Truck
Brand: Linde Material HandlingThe MT12 pallet truck has a particularly compact design and is therefore very easy to handle – even when space is at a premium.
This ensures fast handling processes in the retail trade, in narrow aisles or in production areas.
The vehicle is equipped with a lithium-ion battery that can be easily replaced via plug-and-play.
Charging takes place via an external charger at any socket. An effective parking brake holds the truck firmly in position when it is, for example, on an inclined truck loading ramp.
The MT12 pallet truck has a robust chassis and reinforced forks and can therefore easily transport loads of up to 1,200 kilograms.
Features- Efficient parking brake
- Long tiller arm
- Low chassis
- Electromagnetic brake
- Emergency belly switch
- Ergonomically shaped tiller handle
- Dual butterfly control
- Lightweight battery
- Multi-functional display
- Powerful drive motor
- Compact design
- Lithium-ion battery
- Three hours of autonomous work
- Long maintenance intervals
- CAN bus structure
- Battery management system
Specifications
Brand
Manufacturer
- LINDE
Model Designation
- MT12
Power Unit
- Battery
Operation
- Pedestrian
Load Capacity Q (t)
- 1.2
Load Center (mm)
- 600
Axle Center to Fork Face (mm)
- 950 (880)
Wheelbase (mm)
- 1190 (1120)
Service Weight (kg)
- 130
Axle Load with Load, Front/Rear (kg)
- 420 / 910
Axle Load without Load, Front/Rear (kg)
- 110 / 20
Tyre: SE=(superelastic), P=(pneumatic)
- PU / PU
Tyre Size, Front (mm)
- 210 x 70
Tyre Size, Rear (mm)
- 80 x 60
Wheels, Number Front/Rear (X=drive)
- 1x+/4
Lift (mm)
- 110
Height of Tiller Arm in Driving Position, min/max (mm)
- 800/1190
Fork Height, Lowered (mm)
- 80
Overall Length (mm)
- 1540
Length to Fork Face (mm)
- 390
Overall Width (mm)
- 560(685)
Fork Dimensions sxexl (mm)
- 53 x 150 x 1150
Distance between Fork-arms (mm)
- 560(685)
Ground Clearance with Load, Center of Wheelbase (mm)
- 27
Aisle Width, 800 x 1200 Along Forks (mm)
- 2062
Turning Radius (mm)
- 1390
Travelling Speed, with/without Load (km / h)
- 4.0 / 4.5
Lifting Speed, with/without Load (m/s)
- 0.02 / 0.025
Lowering Speed, with/without Load (m/s)
- 0.06 / 0.03
Maximum Gradeability, Laden/ Unladen %
- 4 /10
Acceleration Time with/without Load (s)
- n / a
Service brake
- Electric
Drive Motor Rating S2 60 min (kW)
- 0.65
Lift Motor Rating at S3 10 % (kW)
- 0.5
Battery acc. to DIN 43531/ 35/ 36 A, B, C, no
- Li-ion
Battery Voltage, Nominal Capacity K5 ( V/ Ah)
- 24 / 20
Battery Weight kg
- 3.7
Energy Consumption acc. to VDI cycle (kW/h)
- n / a
Type of Drive Control
- DC
Noise Level (dB (A))
- < 74
