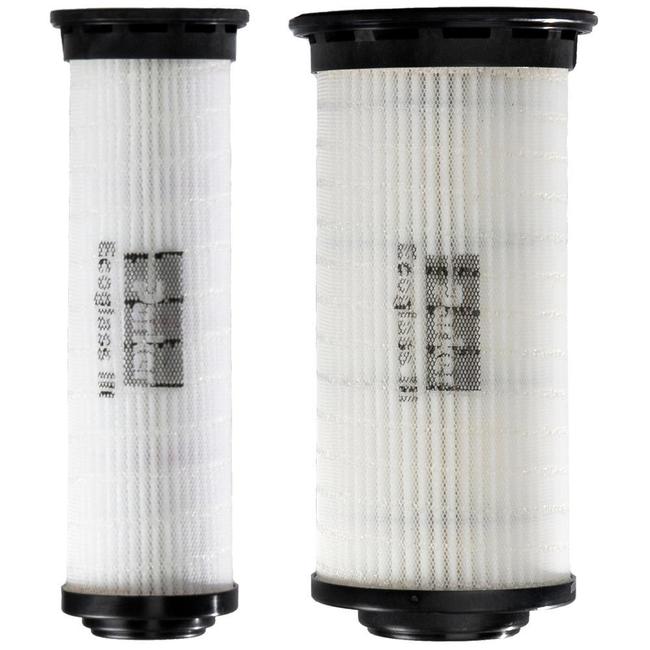

Replacement Elements - Medium Pressure Filter 12CS/50CS Series

Brand: Parker Hannifin

Spin-on cans disposed of each year end up landfills, creating a lot of waste.

Parker engineers have developed an innovative alternative to the age-old spin-on style can with the Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series.

The Parker 12CS/50CS Filter Series design provides all the benefits of high efficiency, long life Microglass filtration.

These hydraulic filters feature a reusable bowl and a patented filter element.

The element core is permanently attached as part of the filter bowl, and the design also prevents filter operation if the proper element is not in place.

When replaced, the element reduces costs, eliminates hot drain requirements, can be easily incinerated, and is better-suited for most landfills.

Using the patented Parker 12CS and 50CS Series replacement elements guarantees Parker’s quality of filtration, while being environmentally conscious.

Using aftermarket filters with unknown media quality may save initial cost but can increase overall costs by requiring more element change outs, more waste, and potentially causing system downtime.

Protect your investment by always buying genuine Parker replacement elements.

Available in Single and Double lengths and several micron ratings (2, 5, 10, and 20), these patented replacement elements ensure the quality of filtration Parker is known for.

Specifications

Element Type

  • Coreless Construction, Fiberglass Media, Synthetic End Caps

Filter Element

  • Patented Coreless Elements Available in 2 micron to 20 micron Utilizing the Latest in Ecoglass Technology.

Filter Housing Series

  • The Filter Housing Series is Located on the Name Plate of the Filter Assembly. 12CS/50CS

Fluid Compatibility

  • Suitable for Use with Mineral & Vegetable Oils, & Some Synthetic Oils. for Other Fluids, Please E-mail Technical Support at HFDtechsupport @ parker.com or Call 800-253-1258.

Length

  • 12CS Series are available in Double Length Only. 50CS Series are available in Single Length Only. for Futher Details, Please E-mail Technical Support at HFDtechsupport @ parker.com or Call 800-253-1258.

Seal Material

  • Nitrile or Fluorocarbon
