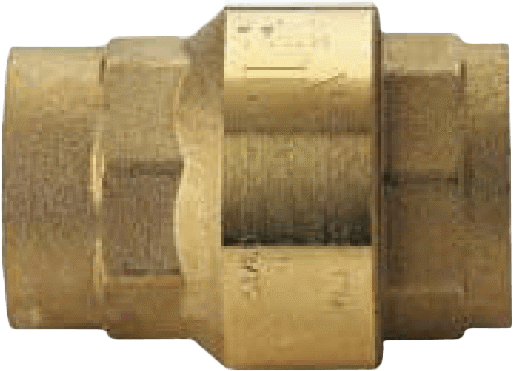

Series 100002 - 100003 Brass In-Line Check Valve
Brand: Bonomi North AmericaHigh Capacity, Size 1/4" to 2" 400 WOG, 2-1/2" to 4" 175 WOG.
100002: NBR for water, oils and general purpose.
100003: With VITON® Seal for fuels and hydrocarbons
Max working TEMPERATURE 352° F/125 psi steam.
Features- Soft Seat for Bubble Tight Shutoff, Spring Loaded for Fast Seating Action
- Compact Design
- Low Cracking Pressure 1/2 psi
- Flow Profile Designed to Minimize Head Loss
- Perfect Seating both at High and Low Pressure, Wide Temperature Range: +10° to 210° F
- Polyethermide Disc to ensure the Best Resistance For Corrosion And Abrasion
- Patented Disc Guide To Prevent Any Side Loading
- Connection: FNPT x FNPT
Specifications
Brand
Body / End Connection Material
- Brass CW 617N UNI EN 12165
DISC Material
- Polyetherimide
Seat Material
- 100002: NBR
- 100003: Viton
Spring Material
- Stainless Steel
Size
- 1/4” to 4”
Temperature Range
- 10° to 210° F
