C46400 ROUND BAR

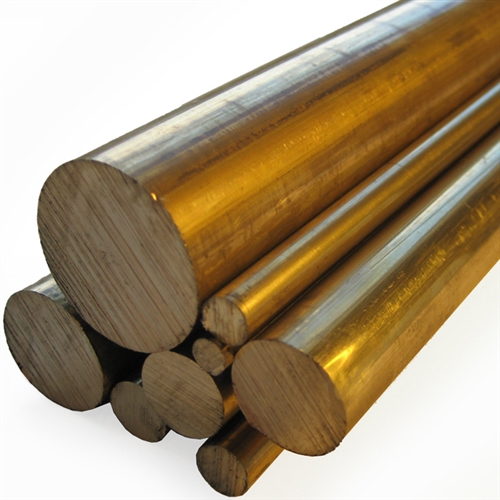

Brand: Atlas BronzeC46400 Naval Brass SOLID ROUND BAR
Stocked as H02 Temper (Half Hard)
Other sizes available. If you do not see your size, please request information or contact eCommerce sales team @ 1-800-478-0887.
Typical Properties (not to be used for specification purposes)
Chemical Composition (as per ASTM B21/B21M-12)
Cu: 59.0-62.0%
Sn: .50-1.00%
Pb: 0.20%
Zn: Remainder%
Fe: 0.10%
Machinability
Machinability Rating: 30
Density: 0.304
Minimum Physical Properties
Tensile Strength, PSI: 58,000
Yield Strength, @ 5% extension under load: 26,000
Elongation, 4x diameter or thickness: 25%
Rockwell "B" Hardness: 55-80
Similar | Equivalent Specification
CDA: C46400
ASTM: B21/B21M-12
SAE: J461| J463
FEDERAL: QQ-B-639
Specifications
Brand
Chemical Composition
- Cu: 59.0-62.0 %
- Sn: .50-1.00 %
- Pb: 0.20 %
- Zn: Remainder %
- Fe: 0.10 %
Machinability Rating
- 30
Density
- 0.304
Minimum Tensile Strength
- 58,000 psi
Minimum Yield Strength, at 5% Extension Under Load
- 26,000
Minimum Elongation, 4x Diameter or Thickness
- 25%
Rockwell 'B' Hardness
- 55-80
Common Applications: Lock Pins, Naval Equipment, Bolts, Nuts, Rivets, Propeller shafts, and fittings.
- UNS: C46400
- Alloy: CuZn39Pb1
- ASTM: B21
- Federal: QQ-B-639
Foreign Specs & Alloy Reference
- British: CZ133
- German: DIN 3.053
