idSolutions Wedge Style Flowmeter Series, FW

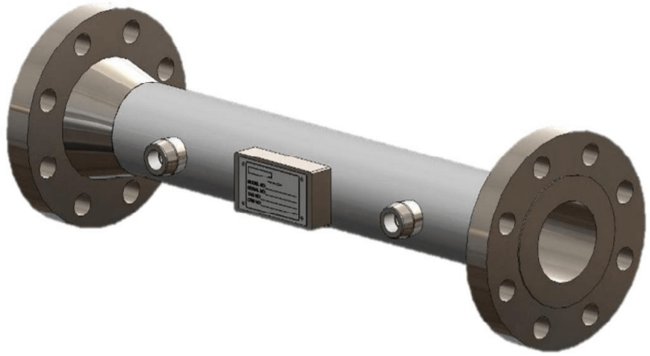

FW Wedge Style Flowmeter Series

Brand: idSolutions
Add Product to My Catalog

Features
  • Process connections may be ANSI or RTJ flanges from 150# Class to 2500#, or bevelled for welding into existing piping
  • Instrument Connections available as NPT, socket weld, ANSI and RTJ flanges, custom flange and valve configurations, as well as dual tap locations
  • Flow tests traceable to NIST are available and when performed within the reynolds number range of the process allow for accuracies of ±0.5%
  • Stable Discharge coefficients from high Reynolds numbers down to an Re# of 500
  • Stable geometry under difficult process conditions reduces the need to calibrate secondary electronics or inspect the primary
  • Design standards based on Kent Taylor, R.W. Miller, ANSI B31.1 and ANSI B31.3
  • A selection of speciality hardfacing by wear or corrosion resistant alloys available to improve the lifespan of the meter under the harshest conditions

1 - 1 of 1 Part Numbers
IDFW
IDFW
  • Wedgemeter Type - Standard
  • Line Size - 0.5"
  • Pipe Material - 316 Stainless Steel
  • Meter I.D. / SCH - SCH 10
  • Wedge Material - 316 Stainless Steel
  • Process Connection Type - ANSI 150 RF
  • Instrument Connections - 1/2" NPT
1 - 1 of 1 Part Numbers

Specifications

Brand

Accuracy

  • ± 0.5 %

Approvals & Certifications

  • Material Test Report

Enclosure, Body Material

  • Alloy 20 or Incoloy
  • Chrome Moly
  • Duplex Stainless Steels
  • Monel
  • Pipe & Wedge: 304 Stainless Steel
  • Pipe & Wedge: 316 Stainless Steel
  • Pipe & Wedge: Carbon Steel
  • Pipe & Wedge: Hastelloy

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ANSI
  • 1" (DN 25) - 1500# ANSI
  • 1" (DN 25) - 300# ANSI
  • 1" (DN 25) - 600# ANSI
  • 1" (DN 25) - 900# ANSI

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 150# ANSI
  • 1/2" (DN 15) - 1500# ANSI
  • 1/2" (DN 15) - 2500# ANSI
  • 1/2" (DN 15) - 300# ANSI
  • 1/2" (DN 15) - 600# ANSI
  • 1/2" (DN 15) - 900# ANSI

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ANSI
  • 3" (DN 80) - 1500# ANSI
  • 3" (DN 80) - 300# ANSI
  • 3" (DN 80) - 600# ANSI
  • 3" (DN 80) - 900# ANSI

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 150# ANSI
  • 3/4" (DN 20) - 1500# ANSI
  • 3/4" (DN 20) - 300# ANSI
  • 3/4" (DN 20) - 600# ANSI
  • 3/4" (DN 20) - 900# ANSI

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE
  • NIST

NPT Connection

  • 1" NPT
  • 1/2" NPT
  • 3/4" NPT

Repeatability

  • ± 0.25 % of Flow Measurement

Size

  • Line Size: 0.5" to 24" (12.7 to 609.6 mm)
  • Pipe Size: 1/2" to 48" (DN 15 to 1200)

Welded Connection

  • 1" Socket Weld End
  • 1/2" Socket Weld End
  • 3/4" Socket Weld End
