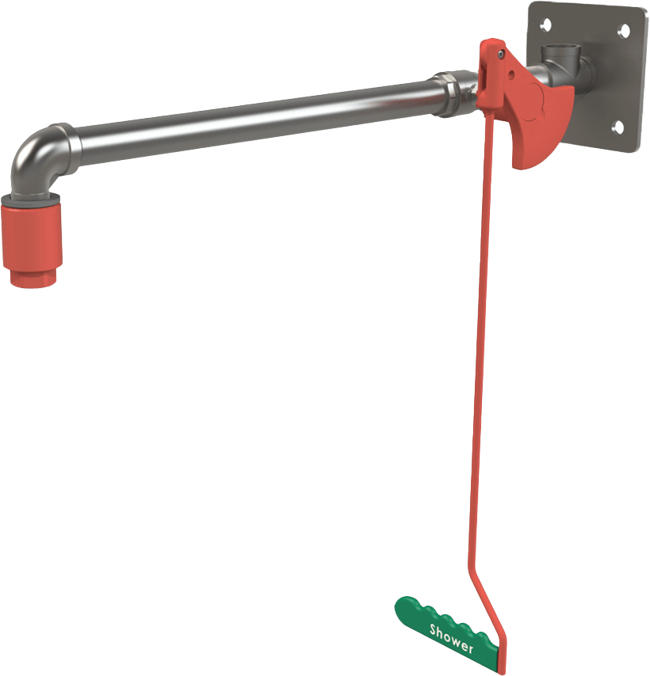

Wall Mounted Unheated Safety Shower
Brand: Hughes Safety ShowersSuited to numerous indoor applications, this wall mounted emergency safety shower is perfect where space is at a premium.
Designed to meet ANSI standards the safety shower will deliver 20 US gallons of water per minute to drench the casualty in the event of an emergency requiring decontamination.
Features- Ideal for areas with limited floor space
- Simple and immediate activation via the pull handle
- Shower nozzle designed specifically for high flow rates, providing an accurate and even distribution of water
- Meets the requirements ANSI standards
Specifications
Brand
Pipework and Fittings
- Stainless Steel (GS) or galvanized mild steel (G)
Operating Valve
- Stainless steel, full bore, stay open ball valve
Shower Nozzle
- Injection moulded nylon 6
Standard Finish
- Polished brush (GS) or green powder coated (G)
Water Inlet
- 1" Female NPT
Operating Pressure
- 2 to 6 BAR G / 29 to 87 psi (higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)
Minimum Flow Rates
- 76 L per minute / 20 US gal per minute
Minimum
- 5C / 41F
Maximum
- 35C / 95F
Shower/Body Spray
- Pull handle
Dimensions (W×D×H)
- 150 mm (5.9 in) x 645 mm (25.4 in) x 719 mm (28.3 in)
Weight
- 5 kg (11 lb)
- Indoors
- Suitable for hazardous areas
