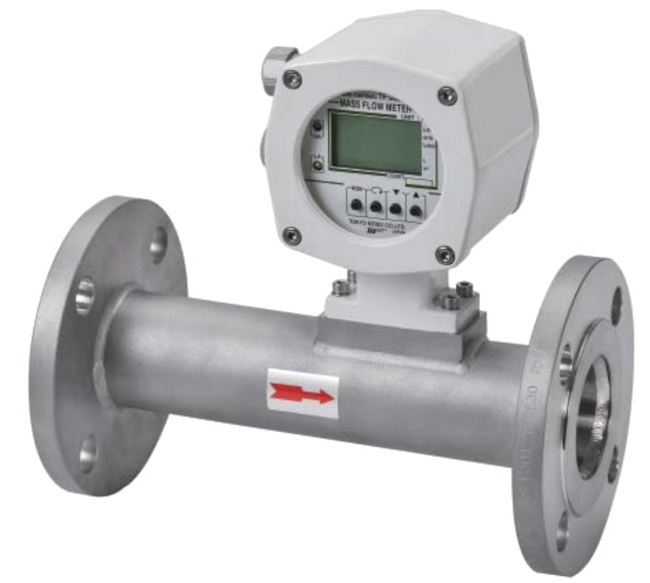

TF-2261T Mini Thermal Mass Flowmeter
Brand: Tokyo Keiso Co, LtdThe TF-2261T can handle larger flows than flowmeters with medium to large connection sizes among the TF-2000 series mini thermal mass flowmeters.
TF-2261T has LCD indication of flow rate and totalization. Also, functions of scaled output pulse and DC4 to 20mA are provided. Furthermore, two-point field adjustable alarm contacts are provided.
TF-2261T can be operated by DC24V power supply.
Specifications
Brand
BSP Connection
- 1" BSPT Female
- 1-1/2" BSPT Female
- 1-1/4" BSPT Female
- 2" BSPT Female
Enclosure, Body Material
- Tube: 304 Stainless Steel
- Tube: 316 Stainless Steel
Environmental Protection
- IP65
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - JIS 10K
Flange Size - 1-1/4” (DN 32)
- 1-1/4" (DN 32) - JIS 10K
Flange Size - 1” (DN 25)
- 1" (DN 25) - JIS 10K
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - JIS 10K
Flange Size - 2” (DN 50)
- 2" (DN 50) - JIS 10K
Flange Size - 3” (DN 80)
- 3" (DN 80) - JIS 10K
Seat / Seal Material
- Seal: FKM
Sensor, Probe Material
- Sensor: 316 Stainless Steel
- Sensor: CTFE
- Sensor: Glass
- Sensor: PT
