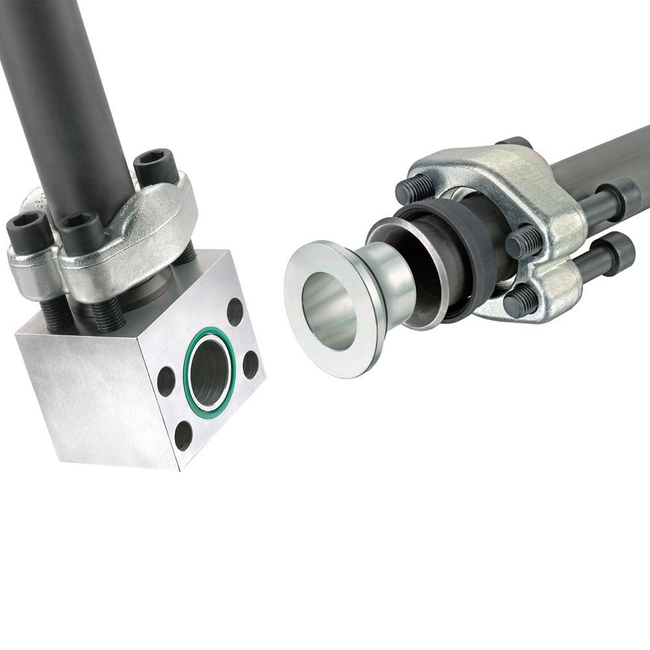

HPF - High Performance Flange System
Brand: Parker HannifinHPF is generally applicable for working pressures up to 420 bar. But the design opens the door to go even beyond this pressure rating: by choosing a suitable combination of flange, insert and tube the pressure rating can be increased to 500 bar.
The System is adjusted to standard tube dimensions with diameters from 25 to 150 mm and wall thickness up to 20 mm.
It is designed for flange patterns according to ISO 6162-1 (SAE J518, code 61), ISO 6162-2 (SAE J518, code 62) and ISO 6164.
Features- The Parker High Performance Flange System stands for total cost reductions! Compared to conventional welding, the High Performance Flange System leads to several time and cost benefits: The pipework fabrication is very fast and the installation time shorter compared to welding. X-ray is not necessary and there are no post-welding cleaning costs. The flushing costs are reduced as well.
- The Parker High Performance Flange System is worldwide available through the Parker distribution network.
- In addition to the product range, Parker offers value added service, because Parker is able to engineer your hydraulic application.
Specifications
Brand
ISO Grade
- 6162-1 Footprint, 6162-2 Footprint, 6164 Footprint
Material
- Steel Zinc-Plated Cr(VI)-free, Steel Phosphated
Pressure Rating (psi)
- 3000, 6000
Size I.D. (inch)
- 1-1/4" - 4
Style
- Complete Flange, Complete Flange with Female Thread, Complete Flange Incl. Insert with Face Seal O-Ring, Insert with Face Seal O-Ring, Complete Flange Incl. Insert with F37 Profile Seal, Insert with F37 Profile Seal, Complete Flange Incl. Insert with Flat
Tube
- 38 x 4.0 - 114.3 x 17.5
Tube O.D. (mm)
- 38 - 114.3
