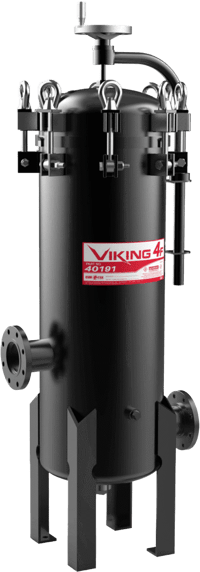

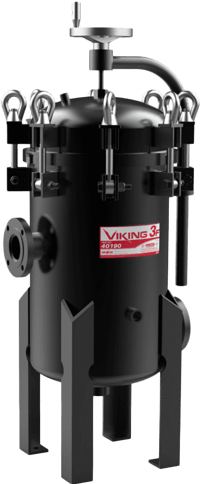

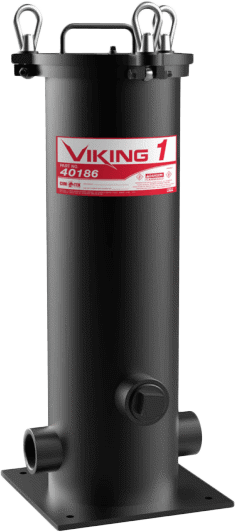

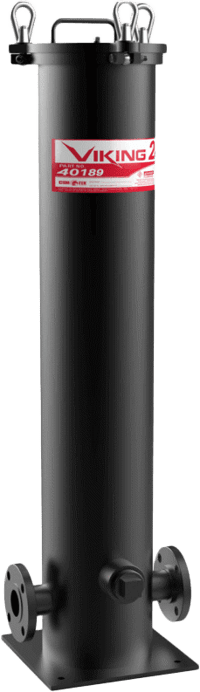

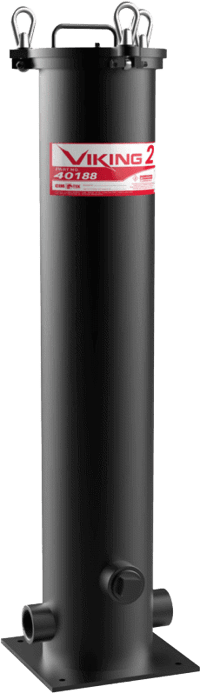

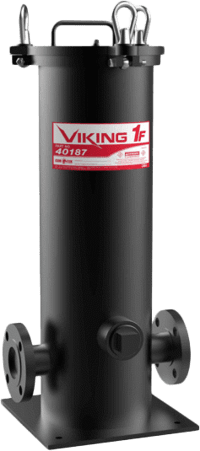

Viking High-flow Housings
Brand: Cim-Tek® Filtration
Crafted from Carbon Steel and able to handle a maximum flow range up to 500gpm, Viking high-flow housings are optimized for high-flow applications and compatible with a wide range of fluids including gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfur diesel - ULSD and fuel oils.
Vikings are also compatible with industrial fluids such as lube, gear, hydraulic, and synthetic oils. Gauge kits are available if you want to monitor operating pressure.
Features- Made of Carbon Steel
- Epoxy Coating Inside and Out
- Powder Coated for Weatherability
- Swing Lid for Easy Access
- Gauge Ports for Improved Monitoring
1 - 6 of 6 Part Numbers
1 - 6 of 6 Part Numbers
Specifications
Brand
In/Out
- 2” NPT
- Flanged
Diameter
- 12”
Length
- 32.5”
- 50.5”
- 59.25”
- 78.5”
GPM
- 120
- 150
- 300
- 500
Number of Elements
- 1
- 2
- 4
- 8
