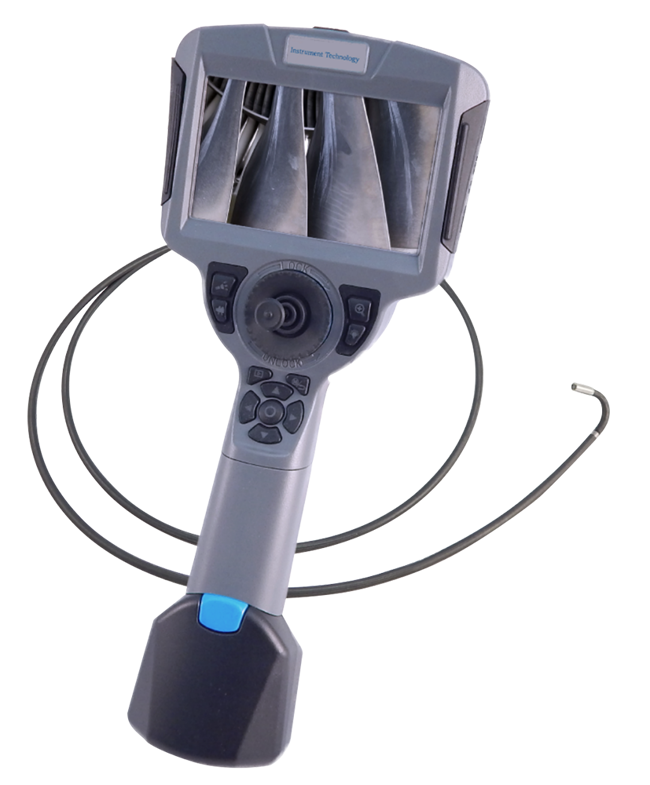

ITI’s series of xP (x-changeable Probes) offer a high degree of flexibility and a wide range of applications. With 360o articulation, LED illuminated Camera with superior imaging capabilities, ITI’s handheld Videoscopes are a cut above the rest.
Features
  • One hand operation with an intuitive interface
  • Easy to maneuver, joystick-controlled articulation
  • Large 5” high resolution display
  • Ideal for use in limited access areas or in spaces that are difficult to navigate such as stairs or ladders
  • Durable, water and oil resistant even in the most challenging environments
  • Extremely easy to use, even while wearing protective gloves

Specifications

Diameter

  • Ø4.5 mm (0.177”)
  • Ø6.2 mm (0.244”)
  • Ø2.85 mm (0.112”)

Length

  • 1.0 m, 2 m, 3 m

Material of Construction

  • Tungsten
  • Stainless
  • Handle: ABS and TPE

Articulation

  • 2-way (L.R)
  • 360° Around

Angle

  • > 160°/150°
  • > 150°/120°
  • > 140°

Mode

  • Joystick

Ingress Rating

  • IP64

Camera Pixel

  • 640x480
  • 1280x720
  • 160k

Camera View Angle

  • 90°
  • 120°

Depth of Field

  • 5-50mm
  • 60 mm-Infinity (60°), 8-80 mm (90°)
  • 5-50 mm, 15 mm-Infinity

Zoom

  • 1x to 3x

Illumination

  • 5 Levels

Display Monitor

  • 5”, 800x480

Power

  • Battery: Li-ion, 3.7 V
  • AC Charger: 100-240 VAC, 50/60 Hz

Operating Temperature

  • -10° to 50° C (14° to 122° F)

  • Auto Engines
  • Aircraft Engines
  • Power Generation
  • Manifolds
  • Valves
  • Portable Battery Applications
