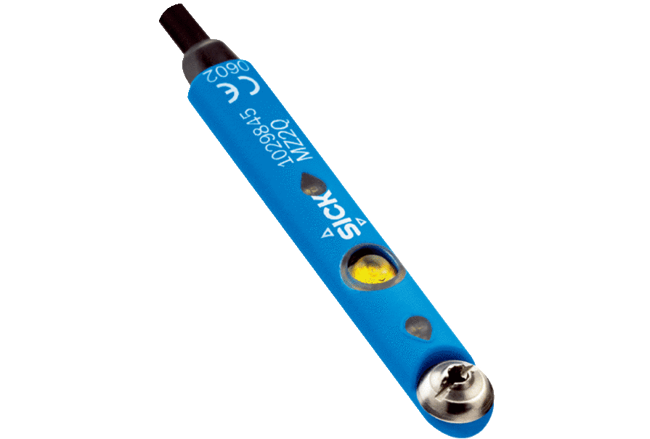

MZ2Q-T Sensor for T-Slot Cylinders
Brand: Sick AGOn pneumatic cylinders, grippers, or carriages, the MZ2Q magnetic cylinder sensors from SICK are able to detect two end positions or intermediate positions with just one sensor.
This is achieved by using two individually adjustable switching points in one sensor housing. This is much easier, quicker, and more cost-effective than conventional solutions, since only one slot is used. As a result, mounting and cabling overheads are halved and applications can be solved efficiently.
At a glance
- Can be used in all standard cylinders, linear slides, and grippers using the T-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders, and cylinders with a dovetail groove
- Drop-in mounting from above simplifies handling and assembly
- Easy adjustment of two switching points via teach-in pushbutton
- LEDs for indicating the two switching points
- Detection range up to 50 mm stroke
- One sensor, two switching points: Reduces commissioning time and costs
- Maximum flexibility thanks to a detection zone up to 50 mm
- Suitable for precise pneumatic applications due to intuitive and precise definition of two switching points
- Quick and easy installation and sensor replacement thanks to drop-in sensor mounting
- Flexible sensor settings, monitoring, advanced diagnostics and visualization through IO-Link (depending on type)
1 - 10 of 10 Part Numbers
1029845
- Connection Type - Cable, 4-Wire, 2 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZPS-KU0
1029846
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZPS-KP0
1041322
- Connection Type - Cable with Connector M8, 4-Pin, with Knurled Nuts, 0.5 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZPS-KR0
1041323
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZPS-KQ0
1042228
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Type - MZ2Q-TSLPSKQ0
1045267
- Connection Type - Cable, 4-Wire, 5 m
- Switching Output - 2 x PNP
- Type - MZ2Q-FTZPS-KUB
1048103
- Connection Type - Cable, 4-Wire, 2 m
- Switching Output - 2 x NPN
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZNS-KU0
1051024
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-FTZPS-KP0S03
1062172
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.8 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-TFSPSKQD
1115197
- Connection Type - Cable, 4-Wire, 2 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Type - MZ2Q-TSLPSKU0
1 - 10 of 10 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus Listed
Output Function
- NO
Communication Interface
- IO-Link
Cylinder Type with Adapter
- Profile Cylinder
- Tie Rod Cylinder
- Round Body Cylinder
- Dovetail Groove Cylinder
- SMC Rail CDQ2
- SMC Rail ECDQ2
Housing Length
- 40 mm
Supply Voltage
- 12-30 Vdc
Ambient Operating Temperature
- -20° to 75° C
Cable Length
- 0.3 to 5 m
Electrical Wiring
- DC 4-Wire
