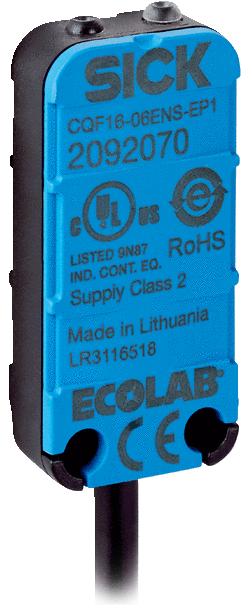

Capacitive Proximity Sensor, CQF
Brand: Sick AG
The CQF capacitive level sensor detects liquids through container walls and through direct contact with the liquids.
The measurement principle compensates for foam, moisture and deposits.
This ensures that the CQF only detects the liquid in the container - nothing else.
For standard applications, the sensor is ready for operation without additional settings.
For challenging applications, it can be taught-in quickly and easily using the cable.

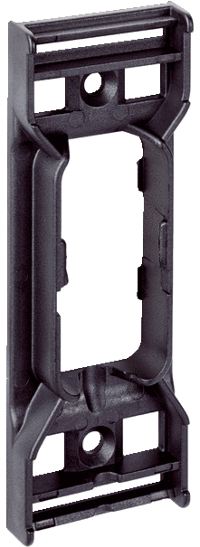

The mounting set offers different installation options, making the CQF is well-suited for countless customer applications.
Features- Reliable level detection - compensation for foam, moisture and deposits
- Flexible and straightforward installation - thanks to supplied mounting bracket
- Quick commissioning - plug and play
- Quick adaption to challenging applications - teach-in via cable
- Space-saving compact housing, enclosure rating: IP67, IP68, IP69K
1 - 8 of 8 Part Numbers
6068622
- Electrical Wiring - DC 4-Wire
- Connection Type - Cable, 4-Wire
- Switching Output - PNP
- Output Fuction - NO
- Type - CQF16-06EPSEW1
6068623
- Electrical Wiring - DC 4-Wire
- Connection Type - Cable, 4-Wire
- Switching Output - PNP
- Output Fuction - NC
- Type - CQF16-06EPOEW1
6068624
- Electrical Wiring - None
- Connection Type - Cable with M8 Male Connector, 4-Pin
- Switching Output - PNP
- Output Fuction - NO
- Type - CQF16-06EPSEP1
6068625
- Electrical Wiring - DC 4-Wire
- Switching Output - PNP
- Output Fuction - NC
- Type - CQF16-06EPOEP1
6068626
- Electrical Wiring - None
- Switching Output - NPN
- Output Fuction - NO
- Type - CQF16-06ENSEW1
6068627
- Electrical Wiring - None
- Switching Output - NPN
- Output Fuction - NC
- Type - CQF16-06ENOEW1
6068628
- Electrical Wiring - None
- Connection Type - Cable with M8 Male Connector, 4-Pin
- Switching Output - NPN
- Output Fuction - NO
- Type - CQF16-06ENSEP1
6068629
- Electrical Wiring - None
- Connection Type - Cable with M8 Male Connector, 4-Pin
- Switching Output - NPN
- Output Fuction - NC
- Type - CQF16-06ENOEP1
1 - 8 of 8 Part Numbers
Specifications
Brand
Housing Material
- Plastic
Environmental Protection
- IP67
- IP68
- IP69K
Sensing Range
- 0.5 to 6 mm
Connection
- Cable / Cable with Male Connector
Electrical Wiring
- DC 4-Wire
Certifications & Approvals
- cULus Listed
- CE
- Ecolab
- EAC
Output Signal
- 100 mA
Switch Output
- PNP, NPN
Output Function
- NO / NC
Installation Type
- Flush, Non-flush
