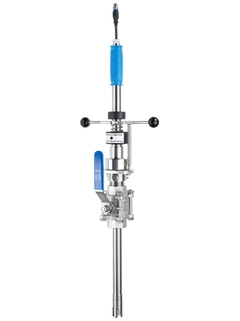

Manual retractable assembly Cleanfit CPA450
Brand: Endress+Hauser Group Services AG
The manual Cleanfit CPA450 is the first step into the world of retractable assemblies. It is designed for installation in thick-walled tanks or large pipes and copes with fibrous or coating media. CPA450 features a ball valve which seals off the process reliably, making sensor handling extremely easy. It is no longer necessary to interrupt the process or empty a tank for sensor service or replacement.Features
- No process interruption for electrode cleaning and calibration – saves maintenance time and costs
- High operating safety through reliable separation from process by ball valve made of stainless steel
- Variable immersion depth up to 700 mm
- Flexible adaptation to all applications by great variety of materials and process connections
Specifications
Measuring principle
- Potentiometric
Application
- Power stations, chemical industry, industrial water treatment, supply technology
Installation
- Manually retractable assembly
Characteristic
- Open and closed tank, piping
Design
- Manually retractable assembly for 120 mm electrodes, rinse chamber connection G1/4"
Material
- Immersion tube: stainless steel 1.4404, Alloy C22, titanium 3.7035
- O-rings: EPDM, Viton or Kalrez
Dimension
- Immersion depth: up to 700 mm (27.56 inch)
Process temperature
- -15 to 130 °C (5 to 266 °F)
Process pressure
- Max. 12 bar at 100 °C (175 psi at 212 °F)
Connection
- Thread G 1 1/4", thread NPT 1 1/4"flange DN32 PN16; flange ASME 1 1/4"
Additional certifications
- 3.1B EN 10204
- Chemical Industry
- Pulp & Paper Industry
- Power Plants
- Wastewater Treatment
- Supply Technology
