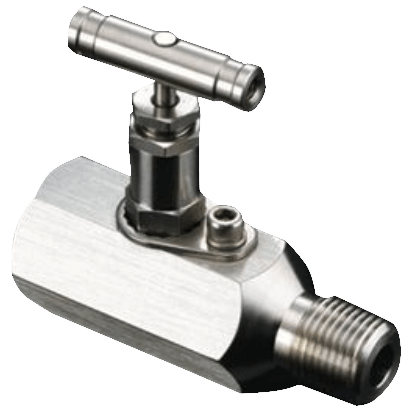

V46A Series Hex. Body Needle Valve
Brand: DK-LOK
Features
- Packing bolt permits packing adjustment externally
- Chevron PTFE packing design provides far improved sealing integrity
- Packing below stem threads is to isolate threads from system fluid and lubricant washout
- Non-rotating stem tip at closure for long-life and leak-tight shutoff
- Lock plate ensures the valve fastened to the body
- NACE MR0175/ISO 15156-3 applicable
Specifications
Brand
Approvals & Certifications
- ABS - American Bureau Shipping
- ASME N, NPT, NS
- BV
- CE
- CRN - Canadian Registration Number
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
Enclosure, Body Material
- 316 Stainless Steel - ASTM A276, A479
- Carbon Steel (JIS G4051)
NPT Inlet
- 1/2" NPT Female
- 1/2" NPT Male
- 1/4" NPT Female
- 3/8" NPT Female
NPT Outlet
- 1/2" NPT Female
- 1/4" NPT Female
- 3/8" NPT Female
Packing Material
- Grafoil
- PTFE
