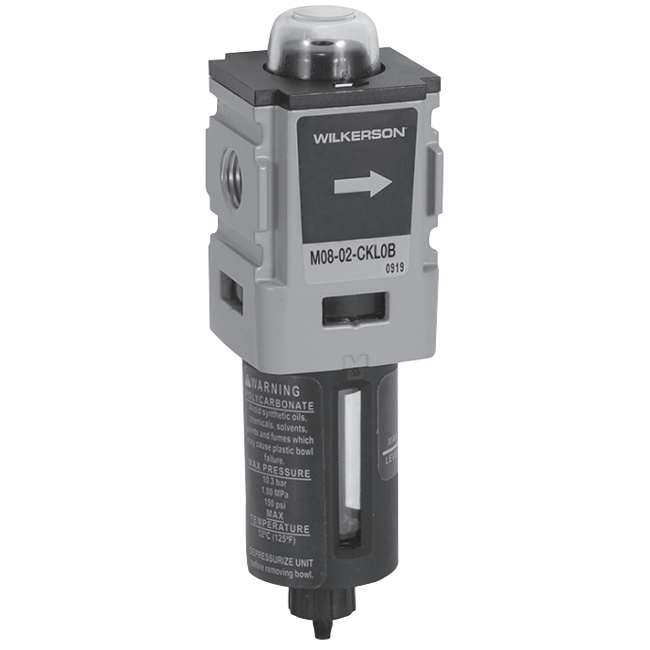

M08 Series Coalescing Filter
Brand: Wilkerson Corporation
Features
- High-efficiency Removal of Water, Oil Aerosols, and Solid Particulate Contaminants Down to 0.01 ppm/wt with Minimum Pressure Drop
- Modern Design and Appearance
- Light Weight
- High Flow Capacity
- Bowl Guard
- Quick-disconnect Bowl
1 - 12 of 12 Part Numbers
.png)
M08-02-BK00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / B Element
M08-02-BL00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Metal Bowl / B Element
M08-02-BR00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / B Element
M08-02-BS00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Metal Bowl / B Element
M08-02-CK00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / C Element
M08-02-CL00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Metal Bowl / C Element
M08-02-CR00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / C Element
M08-02-CS00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Metal Bowl / C Element
M08-02-DK00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / D Element
M08-02-DL00B
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type / Element - Metal Bowl / D Element
M08-02-DR00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Plastic Bowl / Bowl Guard / D Element
M08-02-DS00B
- Port Size - 1/4"
- Model Type - Automatic Piston Drain
- Bowl Type / Element - Metal Bowl / D Element
1 - 12 of 12 Part Numbers
Specifications
Brand
Flow Capacity
- 1.0 micron Coalescing: 12 scfm (5.5 dm³/s, ANR)
- 0.01 micron Coalescing: 7.5 scfm (3.6 dm³/s, ANR)
- Activated Carbon Adsorber: 12.7 scfm (6 dm³/s, ANR)
Maximum Supply Pressure
- Plastic Bowl: 150 psig (10.3 bar)
- Metal Bowl with DPI: 150 psig (10.3 bar)
- Metal Bowl without DPI: 250 psig (17.2 bar)
Operating Temperature
- Plastic Bowl: 14° to 125° F (-10° to 52° C)
- Metal Bowl: 14° to 150° F (-10° to 65.5° C)
Port Size
- NPT / BSPP-G: 1/4
Bowl Capacity
- 0.4 oz.
Standard Filtration (Micron)
- Type B: 0.5 ppm wt
- Type C: 0.01 ppm wt
- Type D: 0.003 ppm wt
Weight
- 0.24 lb (0.11 kg)
