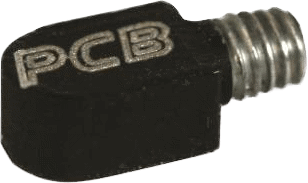

Accelerometer ICP
Brand: PCB PiezotronicsPlatinum Stock Products; Miniature, lightweight (0.2 gm), ceramic shear ICP® accel., 5 mV/g, 2 to 10k Hz, 10-ft detachable cable
Features- Sensitivity: (±20%)5 mV/g (0.5 mV/(m/s²))
- Measurement Range: ±1000 g pk (±9810 m/s² pk)
- Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
- Frequency Range: (±5%)2.0 to 10000 Hz
- Sensing Element: Ceramic
- Weight: 0.007 oz (0.2 gm)
Specifications
Brand
Sensitivity (±20 %)
- 5 mV/g
- 0.5 mV/(m/s²)
Measurement Range
- ± 1000 g pk
- ± 9810 m/s² pk
Frequency Range (±5 %)
- 2.0 to 10000 Hz
Frequency Range (±10 %)
- 1.5 to 15000 Hz
Frequency Range (±3 dB)
- 0.7 to 25000 Hz
Resonant Frequency
- ≥ 70 kHz
Broadband Resolution
- 0.003 g RMS
- 0.03 m/s² RMS
Non-Linearity
- ≤ 1 %
Transverse Sensitivity
- ≤ 5 %
Overload Limit (Shock)
- ± 10000 g pk
- ± 98000 m/s² pk
Temperature Range (Operating)
- -65° to +250° F
- -54° to +121° C
Excitation Voltage
- 18 to 30 Vdc
Constant Current Excitation
- 2 to 20 mA
Output Impedance
- ≤ 200 Ohm
Output Bias Voltage
- 7 to 12 Vdc
Discharge Time Constant
- 0.24 to 1.0 sec
Settling Time (within 10% of bias)
- < 3 sec
Spectral Noise (1 Hz)
- 1500 µg/√Hz
- 14715 (µm/sec2)/√Hz
Spectral Noise (10 Hz)
- 400 µg/√Hz
- 3924 (µm/sec2)/√Hz
Spectral Noise (100 Hz)
- 120 µg/√Hz
- 1177 (µm/sec2)/√Hz
Spectral Noise (1 kHz)
- 30 µg/√Hz
- 294 (µm/sec2)/√Hz
Spectral Noise (10 kHz)
- 20 µg/√Hz
- 196 (µm/sec2)/√Hz
Electrical Isolation (Base)
- > 100000000 Ohm
Size - Height
- .11 in
- 2.8 mm
Size - Length
- 0.34 in
- 8.6 mm
Size - Width
- 0.16 in
- 4.1 mm
Weight
- 0.007 oz.
- 0.2 gm
Sensing Element
- Ceramic
Sensing Geometry
- Shear
Housing Material
- Anodized Aluminum
Sealing
- Epoxy
Electrical Connector
- 3-56 Coaxial Jack
Electrical Connection Position
- Side
Mounting
- Adhesive
