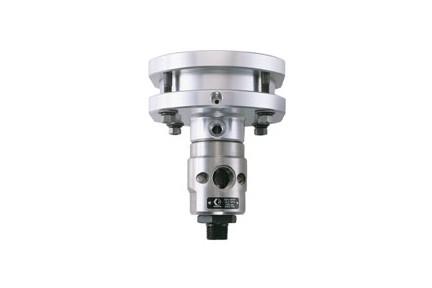

Automatic Dispense Valves
Brand: Graco, IncGraco's Automatic Dispense Valves are available in a variety of sizes and pressure ranges to fit your application requirements.
Features- Automatic valves use ball needle/seat design or snuff-back design.
- Snuff-back valves prevent dripping by pulling material back into tip.
- Double acting valves ensure fast cycling and positive shut-off.
- Spring-close valves will shut if air pressure is lost.
Specifications
Brand
Air Supply Inlet
- 1/8" NPT Female
Fluid Inlet
- 1/4" NPT Female
Fluid Outlet
- C02021, C02022, C02026, & C02027: 1/8" NPT Female
Maximum Fluid Working Pressure
- 22.0 MPa, 220 bar
Minimum Air Supply Pressure
- 0.55 MPa, 5.5 bar
Minimum Fluid Working Pressure
- 0.34 MPa, 3.4 bar
Mounting Hole
- 7/16-20 UNF-2B
Piston
- Air-operated, Spring Return
Shot Cycle Rate
- 15 Shots Per Minute, at 4.0 cc Shot Size with Moderate Viscosity Fluid
Shot Size Range
- 0.2 to 4.0 cc
Viscosity Range
- 3000 to 1 Million Centipoise
Weight
- 0.65 kg
Wetted Parts
- Fluoroelastomer O-Rings
- Structural Bonding
- Anti-Flutter Mastic
- Glass Bonding
- Interior/Exterior Seam Sealing
- Underbody/Rocker Spray Coating
- Robot or Pedestal Mount
